Drilling and through-hole plating are two crucial processes during PCB manufacturing. Drilling lays the foundation for creating holes or slots on the circuit board. These drilled structures are used for securing components and/or interconnecting layers. To establish electrical connections, the drilled structures must be plated. This process of plating the entire structure using copper for conductivity is called through-plating (via plating).

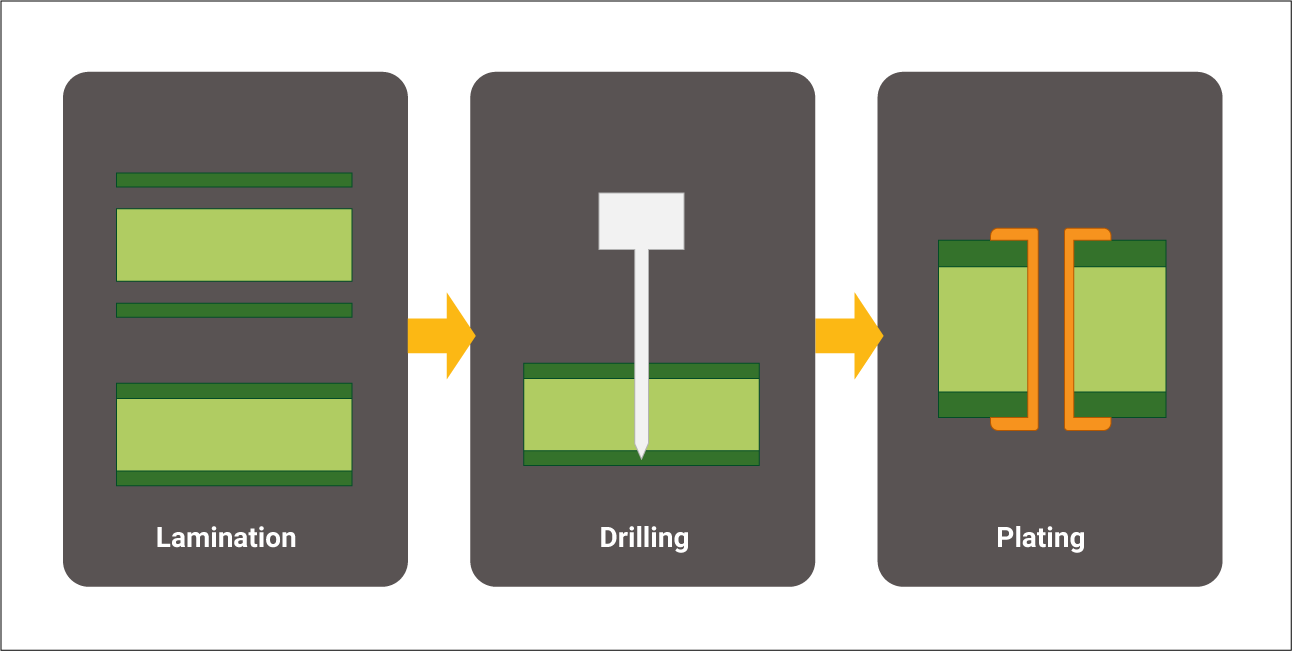

Drilling starts once the lamination is completed and is followed by the hole plating. The flowchart representing the order is given below:


PCB drilling

PCB drilling forms the basis for vias and inter-layer connectivity. Even though it is a commonly used process all around the world, when it comes to circuit boards, drilling is very expensive. This process should be carried out with utmost precision since once a hole is drilled, it cannot be reversed. Hence drilling becomes a time-consuming affair during manufacturing.

Drilling speed

Mechanical holes can be drilled at a speed of 5000 holes per hour. With the increase in the number of holes, the overall cost of the circuit boards increases. Also, as the holes get closer to each other, care should be taken so that they maintain the minimum drill-to-drill spacing.


Beat competitors to the market. Reduce Respins with our Zero-Defect Guarantee.

With Turnkey PRO, Sierra Circuits delivers full turnkey PCB assemblies guaranteed to work.

What is used to drill holes in circuit boards?

To drill PCBs, we have two technologies: mechanical and laser.

Mechanical drilling


Mechanical drilling is used to create through-holes. It is also used for back drilling. In this technology, drill bits are used and the smallest hole can be drilled with a diameter of about 6mils.

Laser drilling

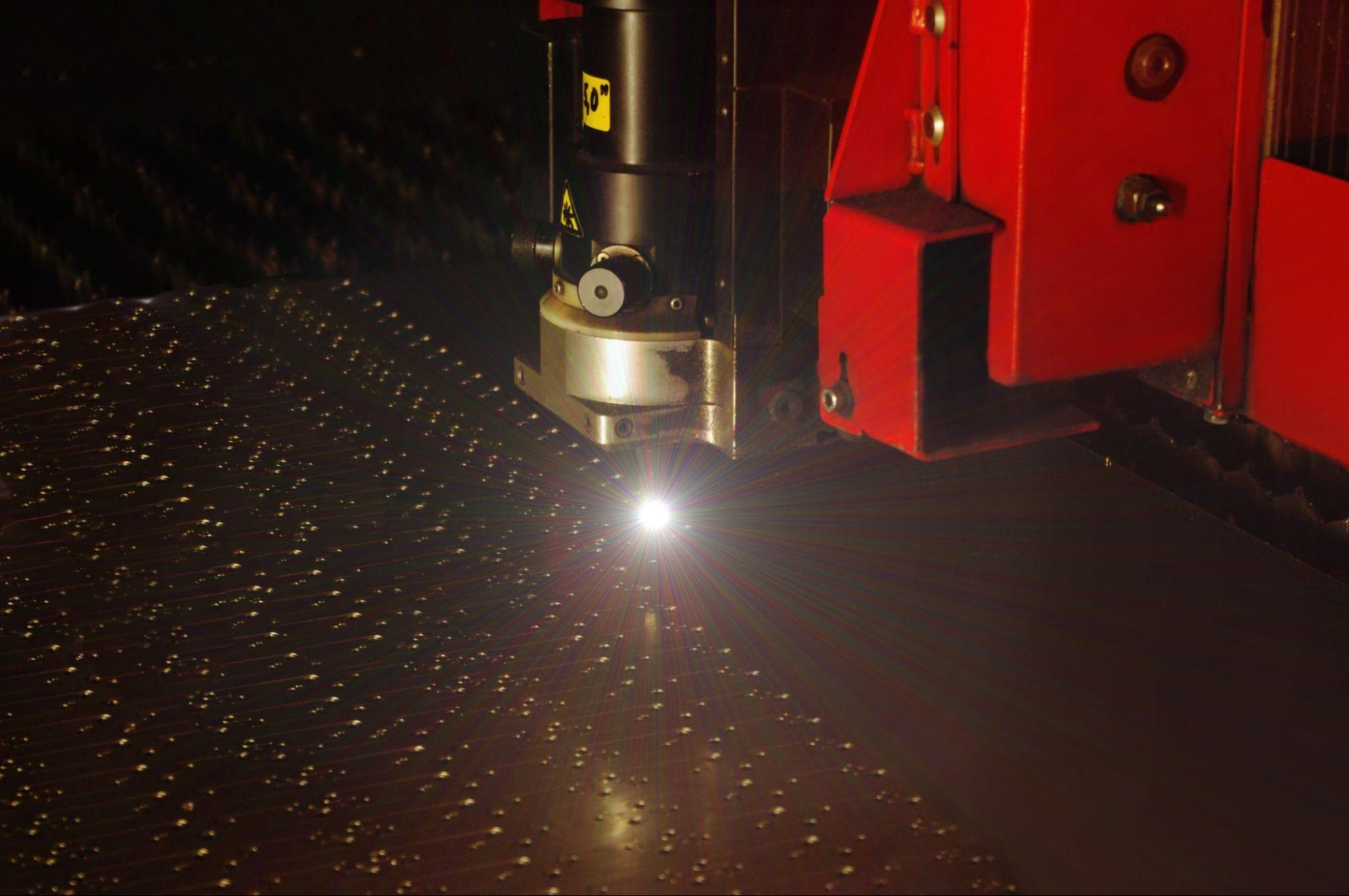

For more precise drills, laser drilling is used. This technology enables drilling holes that are smaller than those drilled mechanically. This process takes place with no contact between the board and the tool. Usually, it comes in handy when holes are drilled between layers of the circuit board. When a through-hole is required, this technique is seldom implemented.

Laser drilling is more frequently employed for the creating blind and buried vias. The minimum diameter of the hole obtained using this technique is 4mils.

Drill tolerances

Feature Tolerance
Drill tolerance for PTH ±3 mils
Drill tolerance for NPTH ±2 mils
Via location 1 mil

Important aspects of drilling

The process of drilling is not just about the size of the holes to be created, but also involves many aspects whose design determines the overall efficiency of the process. Below are the important ones.

Aspect ratio

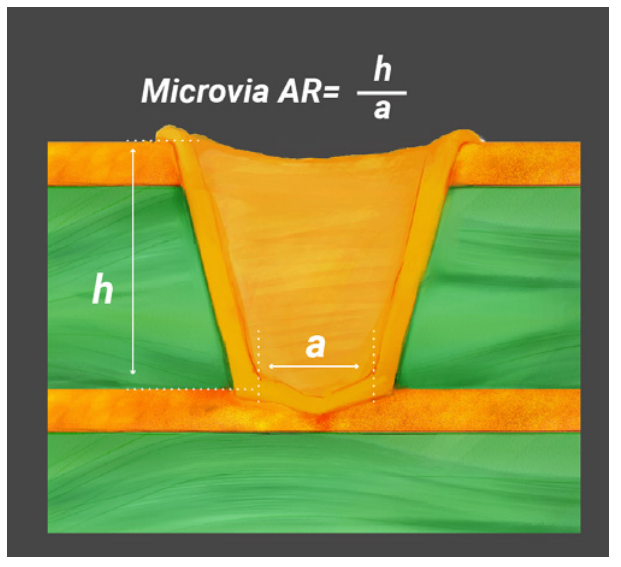

The aspect ratio (AR) for a through-hole is defined as the ratio between PCB thickness and the diameter of the drilled hole. The thickness/depth of the microvias is not the same as that of the board. Hence for microvias, the aspect ratio is defined as the ratio between the depth of the ]hole and its diameter.

For through-holes, the ideal aspect ratio is 10:1 and for microvias, it is 0.75:1.

AR is an important factor that determines the ease with which copper plating can be done inside the holes. When the depth of the hole increases and the diameter decreases (higher aspect ratio), it is difficult to copper plate the hole.

Annular ring and drill-to-copper

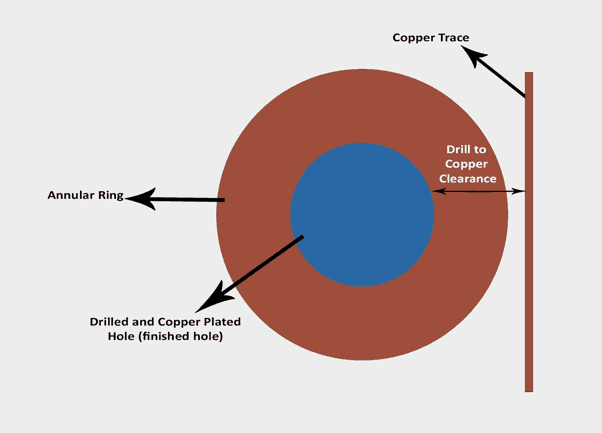

Annular ring is the area of a copper pad that surrounds a drilled hole. It helps to establish connections between a plated hole and nearby traces or other copper structures.
