Instantly quote and order standard technology, rigid PCBs up to 12 layers and 4-mil trace and space
Welcome to Sierra Circuits, your go-to solution for top-tier electronics, offering online PCB manufacturing and assembly quotes. With our instant quoting and ordering system, you can seamlessly access and procure standard technology rigid boards of up to 12 layers, featuring an impressive 4-mil trace and space. This user-friendly process ensures that you can obtain precisely what you need, tailored to your project requirements.

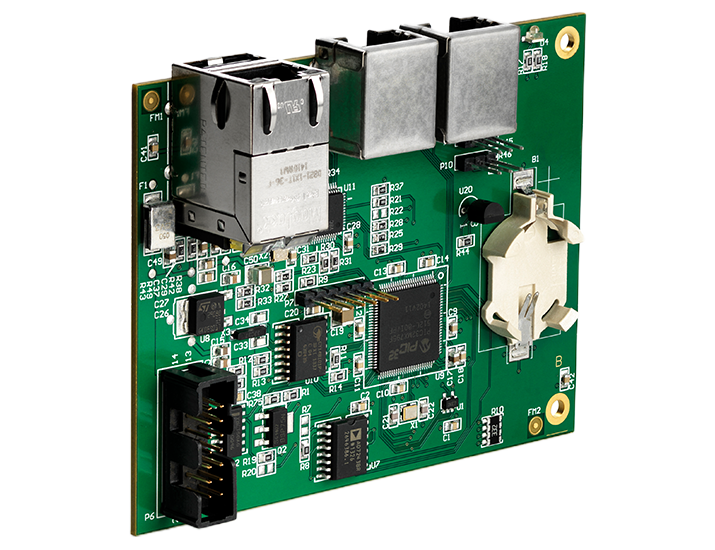

Online PCB manufacturing for prototypes with agility
- 1 – 1,500 completely assembled boards
- Built to IPC-6012 class 2 specs
- UL approved
- Complete DFM check by our CAM engineers
- Big selection of different surface finishes and materials
- Edge plating, gold fingers/edge fingers, etc.

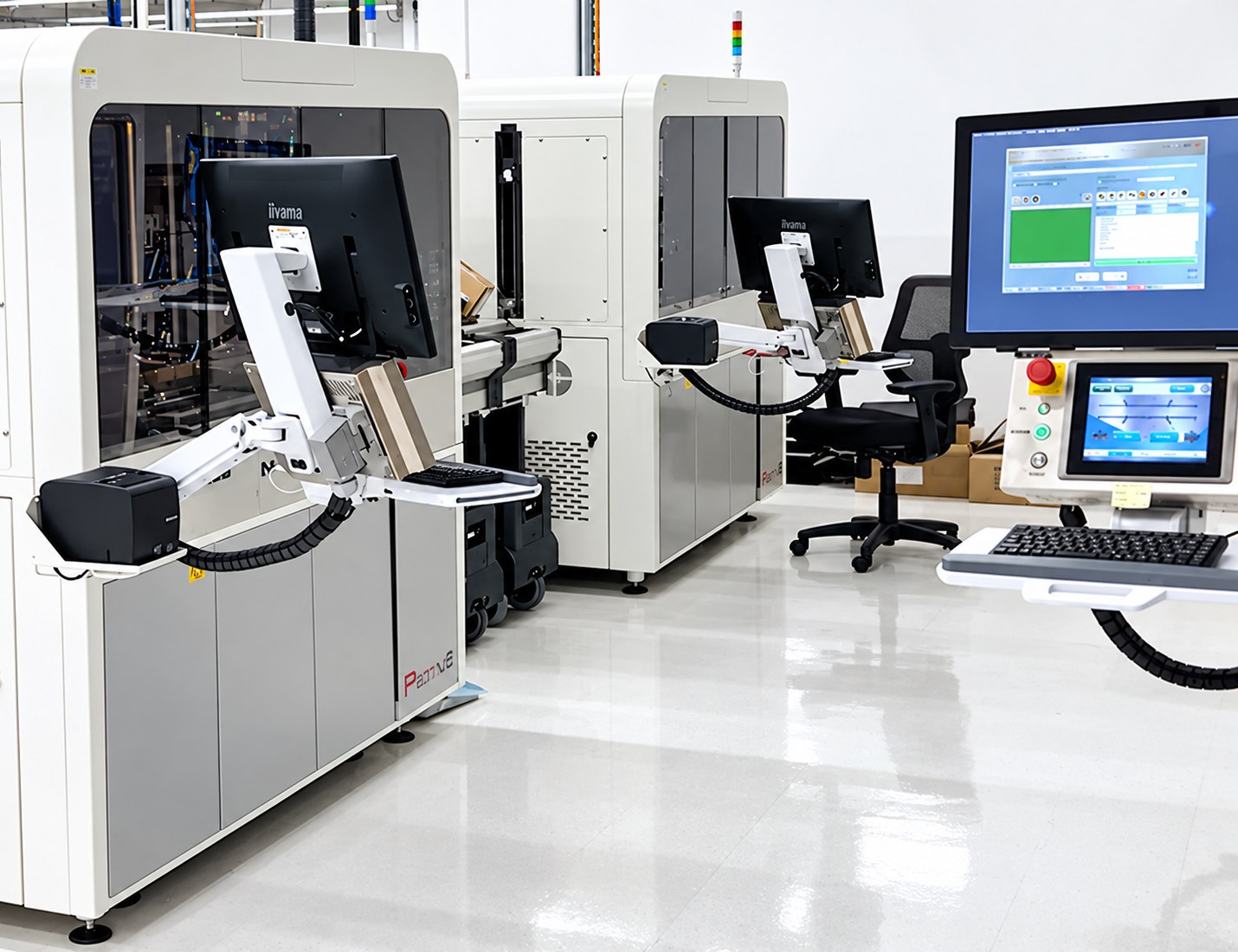

PCB fab and assembly in the U.S.
Ready to start building with the highest quality boards? Sierra Circuits helps you place online PCB manufacturing and assemble quotes to build your circuit boards, right here in the U.S.
Our commitment to agility extends to our prototyping services, allowing you to order anywhere from 1 to 1,500 completely assembled boards. This flexibility is coupled with adherence to IPC-6012 class 2 specifications, ensuring that the PCBs meet the industry’s stringent standards. Additionally, our boards are UL approved, signifying their compliance with rigorous safety and quality standards.
Choose from our extensive selection of surface finishes and materials to suit your specific project needs. Whether you require edge plating, gold fingers, edge fingers, or any other specialized features, Sierra Circuits has you covered. Our diverse options empower you to customize your circuits for optimal performance and functionality.
We check your design for manufacturability when you place an online PCB manufacturing quote.
Quality is at the forefront of our operations, and every job undergoes a thorough design for manufacturability (DFM) check by our skilled CAM engineers. This meticulous review guarantees that your design aligns seamlessly with the manufacturing process, minimizing the risk of errors and optimizing overall efficiency.
At Sierra Circuits, we take pride in our ability to offer online PCB manufacturing and assembly quotes. Our team of engineers stands ready to assist you in realizing your vision, providing expert guidance and ensuring that your printed circuit boards are built with the utmost precision and quality.
Sierra Circuits supports IPC-2581.
IPC-2581 serves as a pivotal standard in the realm of PCB fabrication, revolutionizing the exchange of design data. As an open, vendor-neutral format, it elevates communication efficiency by offering a comprehensive platform for sharing critical details such as layer stack-up and drill specifications. Adopting IPC-2581 not only fosters enhanced collaboration but also reduces errors during data transfer, ultimately contributing to the heightened precision and reliability of the entire manufacturing process.
Product Promise
Sierra Circuits manufactures your PCBs with full intellectual property protection.
A-la carte options for flexibility
- PCB fabrication
- Component procurement optional
- In-house assembly optional
The highest quality boards for your projects
- Dedicated senior CAM engineer
- BOM check
- DFA check
- DFM check – automated
- 100% net-list testing
Prototype with agility
- 1 – 1,500 completely assembled boards
- Built to IPC-6012 class 2 specs
- UL approved
- Additional materials and surface finishes
- Edge plating, gold fingers/edge fingers, etc.
Reduce re-spins: Zero defects, guaranteed
- Zero-defect guarantee
Online PCB fabrication and assembly capabilities |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Feature | Online PCB fabrication capability | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Summary | Our Web PCB service enables ultimate speed and convenience. PCB fabrication: Instantly quote and order standard technology, rigid PCBs up to 12 layers, with standard materials and finishes. These are single lamination PCBs (i.e., no blind/ buried vias allowed). PCB assembly: Instantly quote and order consigned, turnkey and partial-turnkey assembly though the Web PCB service. (Includes instant BOM pricing also!) Note that this service is for rigid PCBs only, not for flex or rigid-flex PCBs. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Data | For PCBs: We prefer RS-274X extended Gerber format. If your file is not in RS-274X, send an aperture file. Please, see FAQ below for what files to include. For assembly: You will need to upload your BOM (excel format) online for quoting. In the final package, we will need the assembly drawing and XY data. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Turntime | 1, 2, 3, 4, 5 and 10 business days from order date. When will my boards ship if I order today? | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cut-off Time | 5PM PST | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum Number of Layers | Up to 12 layers. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Order Quantity/Maximum Order Quantity | From 1 PCB to 1500 PCBs. Some restrictions may apply for large quantities on quick turns. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum Board Size | Maximum area allowed for a board is 150 square inches. Maximum X or Y dimension allowed is 15.9″ and minimum dimension allowed is 0.5″. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Materials | FR4, FR4-06, FR4-lead free. Standard materials are instantly quoted online. Exotic materials may be quoted by a Web Product specialist offline. Please note that Web PCB service is for rigid PCBs only. For flex or rigid-flex PCBs, please get a custom quote directly through a Sierra sales person | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Thickness & Thickness Tolerance | Almost all standard thicknesses including 0.062″, 0.031″ etc. (certain layers may be limited to certain standard thicknesses). The tolerance for thickness in Web PCBs is +/- 10% of nominal thickness for boards down to 0.031 thick. For boards less than 0.031 thick, the thickness tolerance is constant at +/- 0.003 (+/- 3 mils). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Arrays | Arrays are allowed in Web PCB products. But we will NOT create the arrays for you. Your file has to have the array as a single-up image! When quoting, you will have to enter the array dimensions, how many boards per array, and individual board dimensions. For PCB quotes purpose, always enter the quantity of individual boards (NOT the quantity of arrays). Arrays may have scoring or route and retain. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Trace & Space | Now allowing down to 4 mils (0.004″) minimum trace and space. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Preferred Manufacturing Criteria | Minimum air-gap of 0.004″ (space between any two copper features). Minimum annular ring of 0.005″ (applies to both plated and non-plated holes). Minimum inner layer drill-to-copper spacing of 0.013″ (applies to both plated and non-plated holes). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Standard Copper Overplate | Surface pattern: Nominal 1 oz/sq foot (0.0013″ to 0.002″) (33 microns to 51 microns) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Copper Plating | Inner layer copper: 0.5 oz or 1 oz. Outer layer (finished) copper: 1 oz or 2 oz. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Plating on Hole Walls | 0.0008″ to 0.0012″ (20 microns to 30 microns). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Surface Finish | HASL (solder), hard gold, bondable gold, immersion gold, immersion silver. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gold Fingers | Gold fingers (aka edge fingers) allowed on HASL finish only. Our standard beveling spec is 0.015” depth and 45 degrees angle. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Standard Gold Thickness | Soft bondable gold Gold thickness: 30 μin (0.76μ) Nickel thickness: – Palladium thickness: – Immersion gold Gold thickness: 1.5 – 2.8 μin (0.038μ – 0.0711μ) Nickel thickness: 125 μin – 250 μin Palladium thickness: – Hard gold Gold thickness: 30 μin (0.8μ) Nickel thickness: – Palladium thickness: – | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Hole Size | Down to 6 mils (0.006″) finished hole size allowed. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum Hole Size | Plated holes: 246 mils (0.246″). Non-plated holes: 199 mils (0.199″). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum Hole Density | Instant quote may not be available if hole density exceeds 100 holes/sq inch (total holes on a board/area of board). Our Web Product specialist may ask for more details before quoting designs with such high hole-density. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Via-in-Pad Features | We allow via-in-pad features on your board. The turntime for such jobs will be minimum 5 days for PCB fabrication. (Any assembly turntime is additional.) All vias in such boards will be filled with non-conductive filling. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Width of Annular Rings | 6 mils (0.006″) (We need this minimum annular ring width on your design to ensure there are no breakouts on the pads in the manufactured board). For more details on annular ring requirements CLICK HERE. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Controlled Dielectric | Allowed but only for standard available thicknesses. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Controlled Impedance | This means in your design, you are specifying the width of certain traces and spacing to achieve a specific resistance. In your impedance modeling, use the Dk for material 370HR. We expect that in your fab drawing, you will have an impedance table that CLEARLY identifies the target impedance(s), the layer(s) on which they exist and the specific trace widths/spaces to be controlled. See a sample format for impedance table. Do note that in this online service, our controlled impedance offering has certain limitations: Only offered for boards up to 6 layers. Only available with +/- 10% tolerance. You can have controlled impedances on up to 4 different layers on your board. On any layer, you can have up to two different controlled impedances. Our engineers will meet your controlled impedance requirements using our own stack-up. (All we need is your controlled impedance info. We do not need and may not use any specific controlled dielectric information you provide.) If your controlled impedance requirements exceed this spec, please ask for a custom quote. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Counterbores/Countersinks | Available | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Internal Cutouts/Slots & Notches | Up to 10 plated slots allowed per board. Up to 10 non-plated slots allowed per board. (If any of the above allowances are exceeded in your design, we can still process it for a minimum $100 extra lot charge on your order. We will get your approval before doing so.) Up to 10 cutouts allowed per board. Up to 10 notches allowed per board. Minimum inside radius (for any notch, cutout or slot) = 20 mil (0.02″). Minimum width (of any notch, cutout or slot) = 40 mil (0.04″). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multiple Parts | We expect to see a single image of a single PCB, and the vast majority of the orders we see comply with this. However, if your files do have more than one part on it, we will charge you $100 extra on the order ($100 lot charge). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Soldermask Process | Solder mask is available in the following colors: green, blue, red, black, white and clear. It is allowed on both sides. In our Web PCB service, we only offer LPI solder mask. Please follow the guidelines given below. 1. LPI solder mask (green, blue, red and clear color) 2. LPI solder mask (black or white color) Note We only offer LPI solder mask in our Web PCB service. If your design forces us to use laser direct imaging LPI (LDI-LPI) solder mask, we will contact you and get approval for a $500 extra charge on your order. In such case, please see design guidelines for LDI-LPI solder mask. 3. LDI-LPI solder mask (green, red and blue color) 4. LDI-LPI solder mask (black color) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Silkscreen/Legend | Legend colors available: white, black, yellow. Both sides allowed. (Legend should have minimum 5 mils (0.005″) trace width). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Logo & UL Markings | Vendor markings include company logo, UL marking, flammability, etc. Such vendor markings will be put in bottom silkscreen. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electrical Testing | Electrical testing is mandatory for all boards. This is the only way for any PCB manufacturer to ensure the product shipped has zero shorts or opens.
Visual inspection can never be 100% effective. Especially, if the defect is under the solder mask, electrical test is the only way to catch it. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Shipping Options | FedEx, UPS, Will Call. You can use your own FedEx/UPS account number. International shipments allowed. All duties/customs are the responsibility of the customer. See shipping charges here. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Payment Terms | Credit card (purchase order allowed only for select customers who have set up credit terms). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Additional Requirements | For 4-layer or more orders, please include stack-up information. Please be available to clarify any discrepancies by providing your 24-hour contact number.
IMPORTANT NOTE: 1. Web PCBs are manufactured to IPC-6012 Class 2 – No Coupon specifications. (Note that we do not provide any microsection reports or IPC coupons in Web PCB service. If you need such reports or you need your boards made to mil-spec or Class 3 specs, please ask for a custom quote). 2. Also, if your design has ITAR / EAR Export Controlled considerations, do mark the ITAR / EAR Export Controlled radio button when getting a quote. Sierra Circuit is not accountable for any violation if the customer missed mentioning the ITAR or EAR Export Controlled upfront. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Restrictions (For some special boards, instant pricing is not available. We will send you custom quote instead.) | For PCBs, special features like milling, blind/buried vias, tented vias, mixed copper layers, etc., cannot be instantly priced online. However, please use the online price matrix anyway and press the CLICK HERE link. A Web Product specialist will contact you and get you a quote as needed. For assembly, our online labor quote is for RIGID boards only with the below specifications: Minimum passive component size allowed is 0201. Minimum pitch allowed is 0.4 mm for regular SMT devices (for BGA the minimum pitch allowed is 0.5 mm). Maximum number of through-hole components (per board) is 20. Minimum component pad size must be 8 mil X 8 mil or 8 mil diameter. Furthermore, it does not include the following: 1. Assembly of flex or rigid-flex boards 2. Assembly of special items like PEM nuts, turrets terminals, rivets, and press-fit connectors. 3. Special assembly processes like: wire-bonding , conformal coating, underfills, staking, POP assembly, wires & cables assembly. 4. Assembly rework like cutting traces, soldering wire jumpers & cables onto the boards. If any of these is required, such services will be quoted separately by a Web Product specialist. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OUR RIGHT TO REFUSE AN ORDER | Sierra Circuits reserves the right to refuse any Web PCB order within 1 business day. This rarely ever happens, but may happen if the board design has special complexities that are not commensurate with the price paid online. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
