PCB material OEMs such as Isola, Rogers, and DuPont develop laminates optimized for specific electrical and mechanical requirements.

These laminates are grouped into different substrate families (FR4, polyimide, PTFE) based on their resin system, dielectric performance, and intended application. Understanding the strengths of different OEMs and dielectric families helps you select the right substrate for your design.

In this article, we list major PCB laminate manufacturers and their strengths. We also discuss different printed board material families and their properties.

Highlights:

1. High-speed digital laminates such as Megtron 6, Astra MT77, and Tachyon 100G are used for 56G/112G networking, AI, and server applications.
2. Rogers and Taconic PTFE or ceramic-filled laminates like RO3003 and RT/DUROID 5880 are chosen for ultra-low-loss RF and microwave designs.
3. Polyimide laminates from Arlon and Ventec are picked for aerospace, defense, and high-temperature applications requiring long-term thermal reliability.
4. DuPont Pyralux is generally chosen for flexible and rigid-flex designs used in compact, lightweight, and dynamic electronic systems.

Who are the leading PCB material OEMs?

Original equipment manufacturers (OEMs) such as Isola, Nelco, Ventec, Panasonic, and Arlon are widely recognized for high-reliability laminates used in servers, aerospace, defense, automotive, and high-speed computing systems. Rogers and Taconic dominate RF and microwave materials, while DuPont is the industry standard for flexible and rigid-flex laminates.

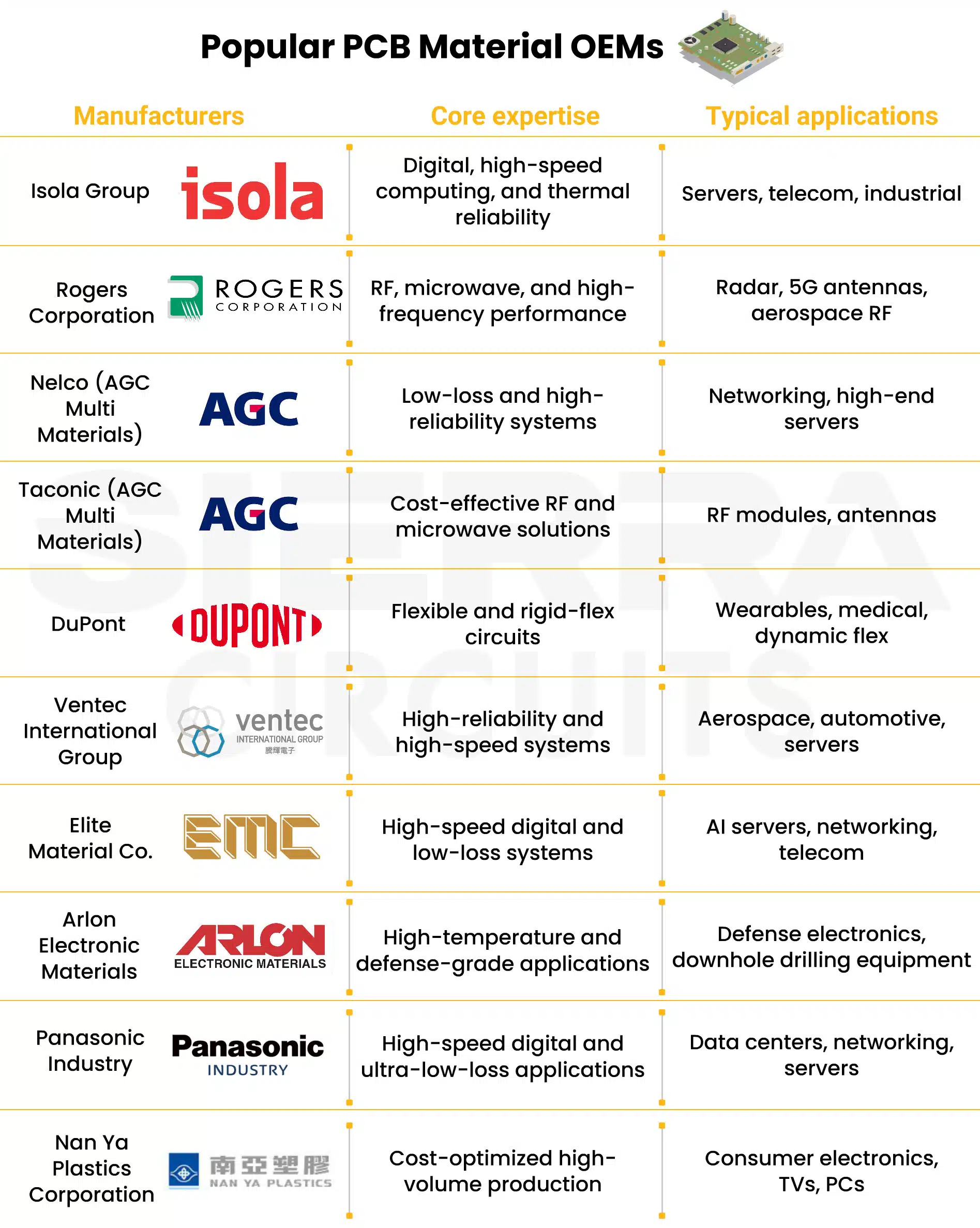

The infographic below lists major PCB laminate manufacturers, their expertise, and common application areas.

In this section, we will discuss the major PCB material OEMs, highlight their areas of expertise, and compare the features of their commonly used laminates in a table.

1. Isola Group

Isola is one of the most recognized PCB material OEMs for digital infrastructure and enterprise computing. The company offers laminate solutions across multiple material families that include standard FR4, polyimide laminates, and low-loss hydrocarbon-based systems.

Isola materials are widely used in:

1. High-speed servers
2. Telecom infrastructure
3. Industrial computing
4. Data center hardware

Their substrates are known for strong thermal reliability, consistent processing behavior, and robust lead-free assembly performance. Engineers often select Isola when balancing high-speed electrical performance with manufacturability and long-term reliability.

Among Isola’s portfolio, FR408HR remains one of the industry’s most widely adopted FR4 materials, while Tachyon and Astra MT77 target next-generation high-speed computing platforms requiring minimal insertion loss and tight impedance control.

To learn how to pick the right laminates, download the PCB Material Design Guide.

PCB Material Design Guide

9 Chapters - 30 Pages - 40 Minute Read

What's Inside:

• Basic properties of the dielectric material to be considered
• Signal loss in PCB substrates
• Copper foil selection
• Key considerations for choosing PCB materials

Download Now

2. Rogers Corporation

Rogers Corporation is considered one of the industry leaders in RF and microwave PCB materials. The company specializes in PTFE-based laminates (commonly known by the trade name Teflon)  and ceramic-filled substrates engineered for stable high-frequency electrical performance.

These materials are widely used in:

1. Radar systems
2. 5G infrastructure
3. Aerospace RF modules
4. Satellite communications

Rogers laminates are known for extremely low dielectric loss and strong signal integrity at microwave and millimeter-wave frequencies.

Among Rogers’ materials, the RO4000 series is widely adopted for commercial RF applications, while RT/duroid materials dominate high-end aerospace and microwave systems.

3. Nelco (AGC Multi Materials)

Nelco, now a part of AGC Multi Material, is a widely recognized PCB material OEM that offers laminates across low-loss epoxy and polyimide materials used in advanced networking and enterprise computing platforms.

These materials are widely used in:

1. Enterprise networking equipment
2. High-performance computing systems
3. Storage infrastructure
4. Telecom platforms

Their laminates are valued for low dielectric loss, stable electrical behavior, and strong reliability under thermal stress. Designers commonly select Nelco for high-layer-count digital systems requiring tight impedance control and consistent high-speed performance.

Among Nelco’s portfolio, the N7000 series remains one of the company’s most recognized material families for low-loss, high-reliability digital applications.

4. Taconic (AGC Multi Materials)

Taconic laminates are now a part of AGC Multi Material’s advanced PCB substrate portfolio. They specialize in PTFE and RF laminates designed for cost-effective microwave and high-frequency applications.

Taconic materials are widely used in:

1. RF antennas
2. Wireless communication modules
3. Commercial microwave systems
4. Industrial RF equipment

Their laminates are recognized for low dielectric loss, stable electrical behavior, and flexible processing characteristics. The company offers laminate solutions across multiple RF PCB material families that include PTFE woven-glass laminates and ceramic-filled microwave substrates.

Among Taconic’s portfolio, the TLY series is widely recognized for microwave applications where careful PCB material selection is critical for stable RF performance and extremely low dielectric loss.

In addition to its PTFE-based RF materials, AGC Multi Material also offers the FastRise laminate family for high-speed digital and mixed RF/digital applications. Unlike Taconic’s traditional PTFE microwave laminates, FastRise is positioned toward low-loss digital interconnect and networking systems.

Pick the best materials that suit your applications with our advanced PCB Material Selector.

PCB DESIGN TOOL

Material Selector

TRY TOOL

5. DuPont

DuPont is considered the industry benchmark for flexible and rigid-flex laminates. The OEM’s polyimide-based PCB material is widely used in dynamic applications.

DuPont materials are widely used in:

1. Wearable electronics
2. Medical devices
3. Aerospace flex circuits
4. Automotive electronics

Their laminates are known for exceptional flex durability, thin-profile construction, and strong thermal stability.

Among DuPont’s portfolio, Pyralux AP remains one of the industry’s most widely adopted materials for dynamic flex applications.

6. Ventec International Group

Ventec is a major supplier of high-reliability laminates for aerospace, automotive, industrial, and high-speed digital systems. The PCB material OEM offers a broad portfolio that includes high-T_g epoxy systems and low-loss digital laminates.

Ventec materials are widely used in:

1. Aerospace electronics
2. Automotive systems
3. Industrial automation
4. Server infrastructure

Their laminates are known for strong thermal reliability, consistent processing behavior, and global supply-chain support. Ventec materials are commonly selected for multilayer systems requiring reliable electrical performance.

Among Ventec’s portfolio, VT-901 materials are widely adopted in aerospace, defense, and other high-temperature electronic systems, while the company’s thermal-management laminates are commonly used in power electronics and heat-intensive systems.

7. Elite Material Co. (EMC)

EMC is a major supplier of high-performance epoxy and low-loss laminate systems used in networking, AI computing, telecom, and high-layer-count PCB applications. The company has gained strong adoption in high-speed digital infrastructure by offering substrates that balance electrical performance, thermal reliability, and manufacturability.

EMC materials are widely used in:

1. High-speed networking systems
2. AI and HPC platforms
3. Telecom infrastructure
4. Enterprise servers

Their laminates are known for low dielectric loss, dimensional stability, and reliable lead-free assembly performance.

Among EMC’s portfolio, EM-528 and EM-890K are widely recognized for demanding high-speed computing applications and advanced multilayer designs.

8. Arlon Electronic Materials

This OEM is now a part of Elite Material Co., which develops products across multiple PCB material families, including polyimide and RF/PTFE laminates built for high-temperature and harsh-environment applications.

Arlon materials are widely used in:

1. Defense electronics
2. Aerospace systems
3. Downhole drilling equipment
4. Harsh industrial environments

Their laminates are known for excellent thermal stability, chemical resistance, and reliability under severe environmental stress.

Among Arlon’s portfolio, the 85N series remains widely adopted in defense and aerospace electronics requiring long-term performance under demanding operating conditions.

9. Panasonic Industry

The company has become one of the leading PCB material OEMs of ultra-low-loss laminates for hyperscale computing and advanced networking systems through its Megtron material family.

Panasonic materials are widely used in:

1. AI servers
2. Data centers
3. Cloud networking hardware
4. High-speed computing platforms

Their laminates are known for extremely low insertion loss, tight impedance control, and excellent signal integrity at very high data rates.

Among Panasonic’s portfolio, Megtron 6 and Megtron 7 are widely regarded as benchmark materials for hyperscale computing and next-generation networking systems.

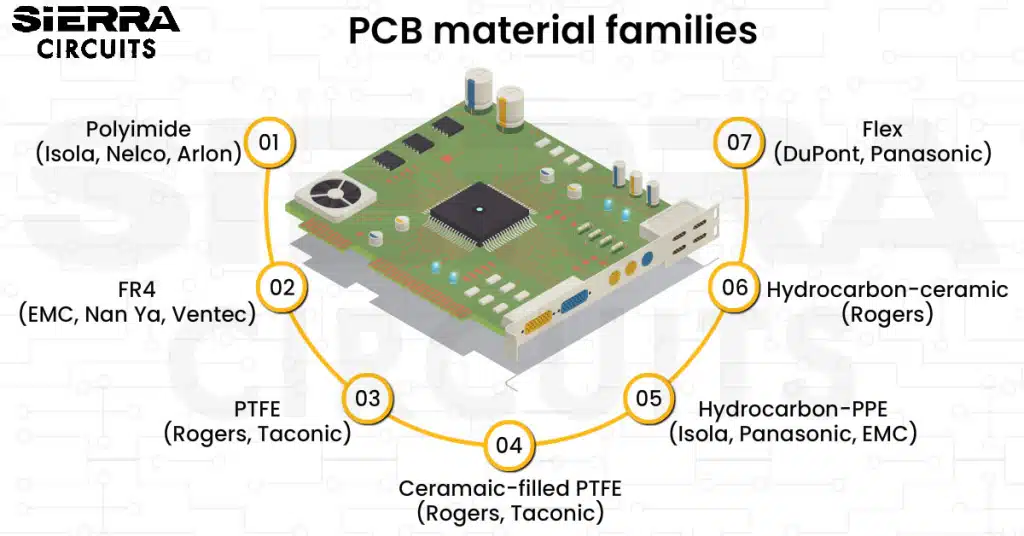

How are PCB materials grouped into different families?

Laminates are categorized based on their resin system, dielectric performance, thermal stability, mechanical behavior, and intended application. Major laminate categories include polyimide, high-speed FR4, PTFE, ceramic-filled PTFE, hydrocarbon/PPE, hydrocarbon-ceramic-filled, and flexible laminates.

In this section, we will discuss the major printed board material families, compare their key electrical and thermal properties in a table, and highlight the important considerations to know before selecting the PCB substrate.

1. Polyimide (PI)

These are high-performance substrates specifically engineered for extreme operating environments. Polyimide laminates significantly outperform standard FR4 in high-temperature, high-reliability, and harsh-condition applications.

Key advantages:

1. Very high glass transition temperature (250 – 260°C).
2. Excellent long-term thermal stability and high T_d.
3. Superior mechanical strength and durability.
4. Strong chemical and solvent resistance.
5. Low outgassing laminates, which make them suitable for aerospace PCBs.

The table below highlights the thermal and electrical robustness of polyimide laminates.

Things PCB designers and engineers should know:

1. Recommended for continuous operating temperatures above 150°C (up to 200 – 220°C depending on the grade).
2. Well-suited for rigid-flex, aerospace, and harsh-environment applications.
3. Higher material cost, but excellent long-term thermal and mechanical reliability.

2. FR4

FR4 remains the most widely used laminated category offered by the most PCB material OEMs. They are categorized into standard high-Tg laminates and advanced low-loss high-speed epoxy systems.

High-speed FR4 offers improved electrical performance while maintaining compatibility with standard fabrication processes. These substrates bridge the gap between standard FR4 and ultra-low-loss laminates for multi-gigabit applications.

Key advantages:

1. Balanced electrical, thermal, and mechanical performance across a wide range of applications.
2. High-speed FR4 grades provide lower dielectric loss and improved signal integrity for multi-gigabit designs.
3. Lower cost than PTFE and hydrocarbon laminates while maintaining good electrical performance.
4. Compatible with existing manufacturing processes.
5. Higher T_g variants improve thermal stability and reduce warpage during soldering and thermal cycling.



Things PCB designers and engineers should know:

1. Advanced FR4 and low-loss epoxy laminates are suitable for high-speed designs ranging from 10 to 112 Gbps.
2. Provides a practical balance between electrical performance and cost.
3. Compatible with conventional multilayer PCB fabrication processes.
4. Supports complex multilayer stack-ups for high-speed digital and networking applications.

PCB DESIGN TOOL

Stackup Designer

TRY TOOL

3. Polytetrafluoroethylene (PTFE)

PTFE laminates deliver ultra-low dielectric loss and highly stable electrical performance, making them a preferred choice for RF, microwave, and millimeter-wave PCB designs.

Key advantages:

1. Extremely low dielectric loss at high frequencies.
2. Stable electrical performance across frequency and temperature.
3. Excellent signal integrity for RF PCB designs.
4. Well-suited for antennas, radar, and mmWave systems.

Things PCB designers and engineers should know:

1. PTFE materials offer ultra-low loss, making them ideal for high-frequency designs (>10 GHz).

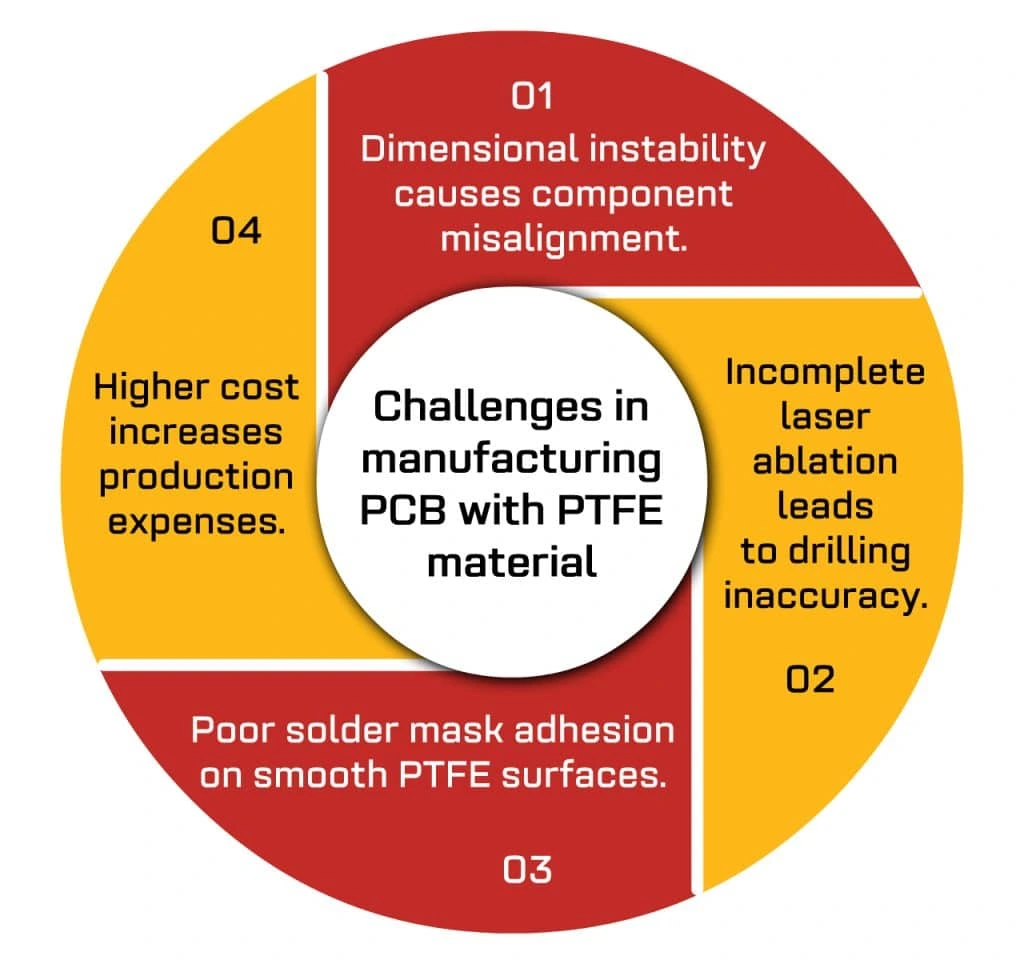

2. More challenging to process than epoxy systems and may require specialized fabrication techniques.



3. Thermal performance varies based on filler content; ceramic-filled variants improve heat dissipation.
4. Higher material and processing costs compared to FR4 and hydrocarbon laminates.

Also, see how to choose PCB laminates based on IPC standards to learn how IPC specifications influence material selection and PCB reliability.

4. Ceramic-filled PTFE

These materials combine the low-loss characteristics of PTFE with improved mechanical stability, dimensional control, and manufacturability.

Key advantages:

1. Lower dielectric loss than epoxy-based laminates.
2. Improved dimensional and thermal stability.
3. Better manufacturability than pure PTFE systems.
4. Suitable for high-frequency and high-power RF designs.

Things PCB designers and engineers should know:

1. Well-suited for RF, microwave, and antenna applications.
2. Ceramic fillers significantly improve thermal conductivity, reduce Z-axis expansion, and enhance dimensional stability and mechanical rigidity compared to unfilled PTFE.
3. Easier to process than pure PTFE laminates, but still require specialized fabrication techniques.
4. Commonly used in power amplifiers, automotive radar (77 GHz), ADAS sensors, and conformal antenna systems.

5. Hydrocarbon-PPE

Hydrocarbon-polyphenylene ether (PPE) laminates provide low dielectric loss while maintaining processing compatibility closer to conventional FR4 systems. These materials are widely used in high-speed digital, AI, networking, and HPC applications.

Key advantages:

1. Lower dielectric loss than standard FR4.
2. Better manufacturability than PTFE materials.
3. Good balance between performance and cost.
4. Suitable for high-speed digital and networking systems.

Things PCB designers and engineers should know:

1. Commonly used for 56G, 112G, and next-generation high-speed systems.
2. Lower D_f reduces insertion loss and improves signal integrity.
3. Easier fabrication compared to PTFE laminates.
4. Widely adopted in servers, AI accelerators, and networking backplanes.
5. Provides a practical balance between electrical performance, manufacturability, and cost.

High-speed systems like AI servers often require embedded passive technologies to improve signal integrity and reduce routing complexity. To learn more, see OhmegaPly and TCR materials with embedded passives technology in PCB manufacturing.

6. Hydrocarbon-ceramic-filled

These materials provide a balance between radio frequency performance, manufacturability, and cost. They are widely used in RF systems that require lower loss than FR4 without the processing complexity of PTFE.

Key advantages:

1. Easier to process than PTFE laminates.
2. Good balance between RF performance and cost.
3. Compatible with standard multilayer PCB fabrication.
4. Suitable for RF and mixed RF/digital designs.

Things PCB designers and engineers should know:

1. Easier to process than PTFE and compatible with standard multilayer fabrication.
2. Lower dielectric loss than standard FR4 materials.
3. Well-suited for mixed RF and digital designs.
4. Higher thermal conductivity improves heat dissipation in RF and power circuits.
5. Commonly used in automotive radar, RF modules, and microwave PCB designs.
6. Lower cost than PTFE for high-volume RF applications.

For radio frequency layout strategies, download our RF and Microwave Design Guide.

RF & Microwave Design Guide

8 Chapters - 44 Pages - 60 Minute Read

What's Inside:

• Basics of RF and microwave board design
• Choosing RF materials
• Trace, grounding, via, and stack-up design
• Component selection and placement
• Testing and isolation requirements to avoid interference

Download Now

7. Flex

Flex laminates enable bending and dynamic motion while maintaining reliable electrical performance. These laminates are widely used in compact and space-constrained electronic systems.

Key advantages:

1. Lightweight and space-efficient.
2. Supports bending and dynamic flexing.
3. Reduces connectors and interconnects.
4. Enables compact and complex electronic designs.

Things PCB designers and engineers should know:

1. Designed for applications requiring bending, folding, or dynamic flexing.
2. Reduce connectors and cable assemblies in compact electronic systems.
3. Requires careful bend-radius and flex-cycle analysis for long-term reliability.
4. PCB thermal management becomes a concern due to the relatively low thermal conductivity.
5. Commonly used in wearables, medical devices, cameras, and mobile electronics.
6. Rigid-flex designs improve packaging density and system reliability.

Need help selecting the right printed board material family for your stack-up? Our engineering team can help you evaluate material alternatives based on signal integrity, thermal performance, manufacturability, and cost before you finalize your design.

You can book a meeting with our experts or call us at +1 (800) 763-7503.

Selecting the right laminate is essential for achieving the required electrical performance, thermal reliability, manufacturability, and long-term durability. As designs move toward higher speeds, higher frequencies, and compact form factors, engineers increasingly rely on specialized PCB material OEMs’ expertise to optimize performance, cost, and reliability.
