Flex PCB layout techniques for manufacturing

Flex printed board design requires a slightly different approach than rigid PCBs. Below are a few guidelines for designing a flex board.

1. Calculate the bend radius based on layer count

The bend radius is the minimum degree up to which the flex area can bend without damage. It must be properly identified early in the design. This ensures that your design allows the necessary number of bends without damaging the copper. IPC-2223 specifies the standards for bend radius.

There are two types of FPCs:

  1. Static: These boards will flex less than 100 times in their lifetime. They will only flex during the installation process.
  2. Dynamic: These FPCs flex during their operation.  They are typically used in printers.

The bend radius depends on the number of layers in your stack-up. You can use the table below to calculate it.

Number of layersBend radius (mils/mm)
1 (single-sided)Flex thickness x 6
2 (double-sided)Flex thickness x 12
Multi-layerFlex thickness x 24

10 tips to design reliable bend areas

  1. Clearly define the rigid and flex regions and the bend radius early in the design stage.

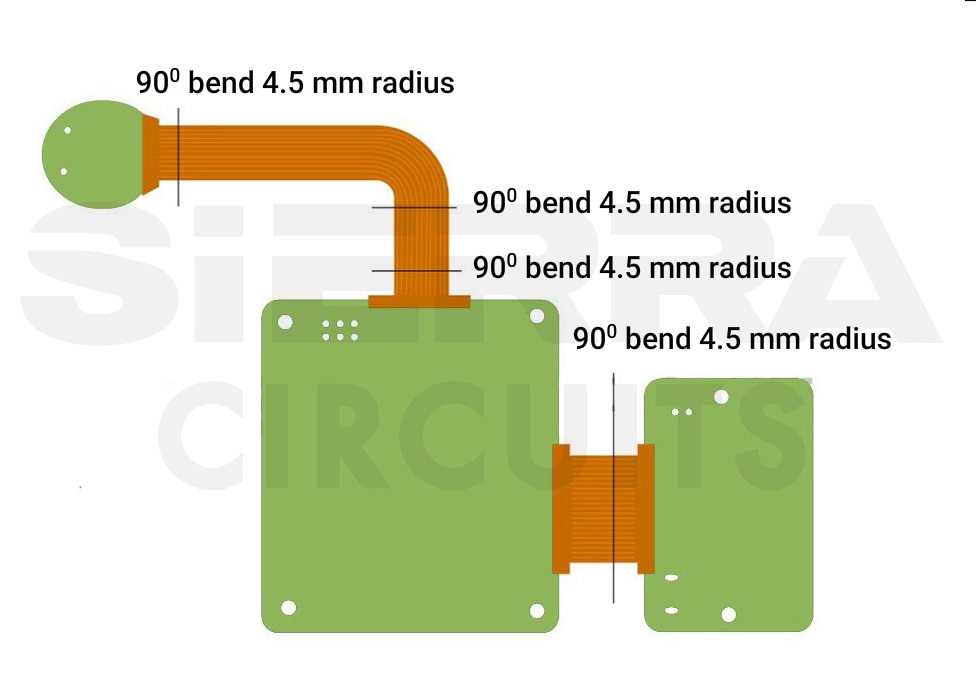

    Defining rigid and flex sections
  2. For dynamic applications, the bend radius should be 100 times the finished board thickness
  3. If there are no traces in the bend region, insert circular cutouts with radii greater than 30 mil to minimize the amount of material that needs to be deformed and increase flexibility.
  4. Avoid plated through holes and component placement within the bend area. Place plated through holes (PTH) at least 20 mil away from the bend area.

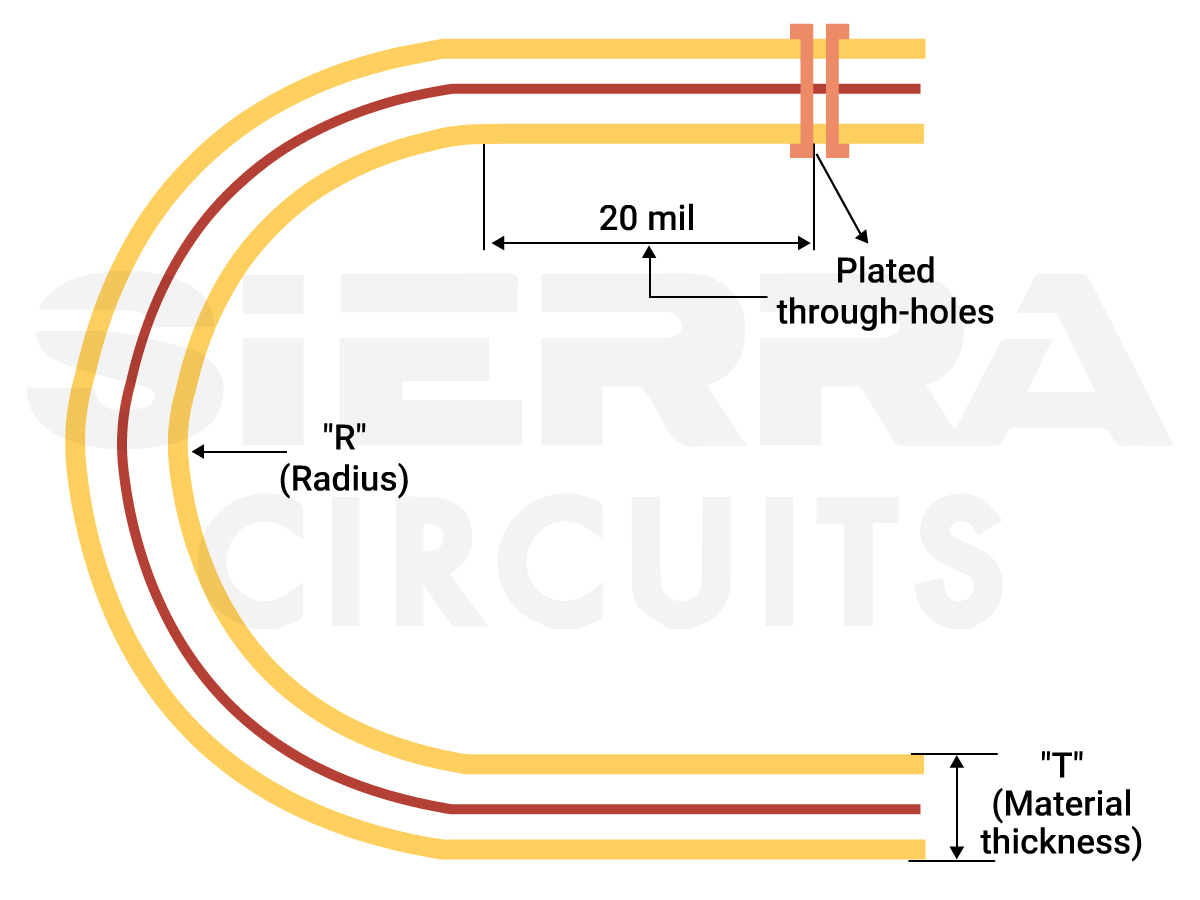

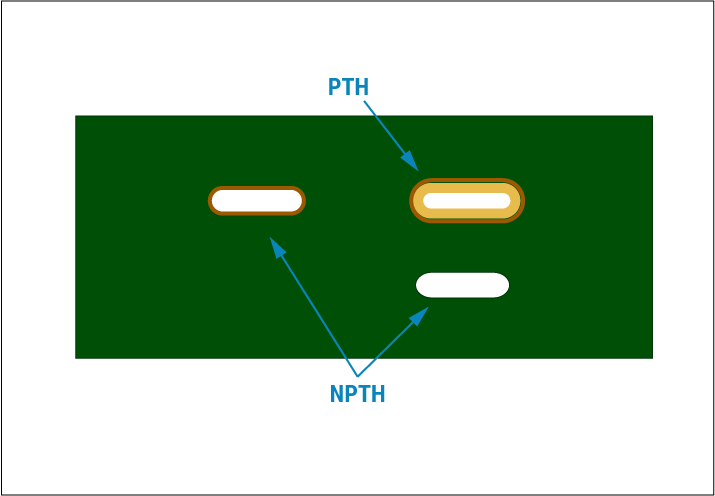

    Maintain a minimum distance of 20 mil between PTH and bend area
  5. Avoid 90˚ bends as they increase the risk of circuit damage. Instead, have gradual bends that are considered safer for the circuit.

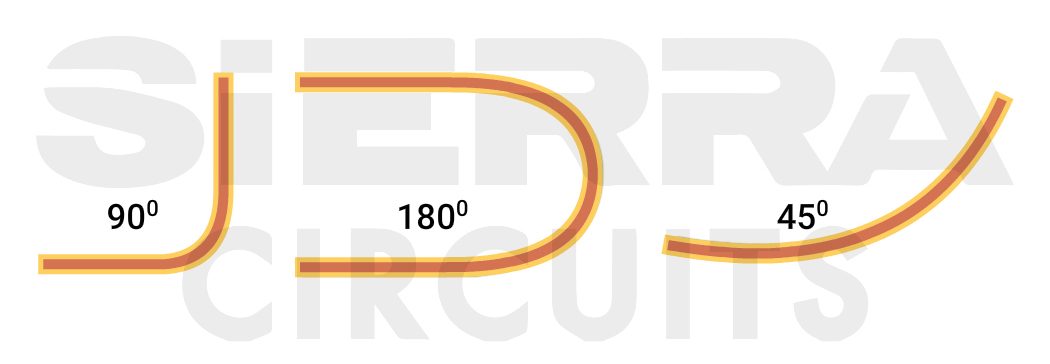

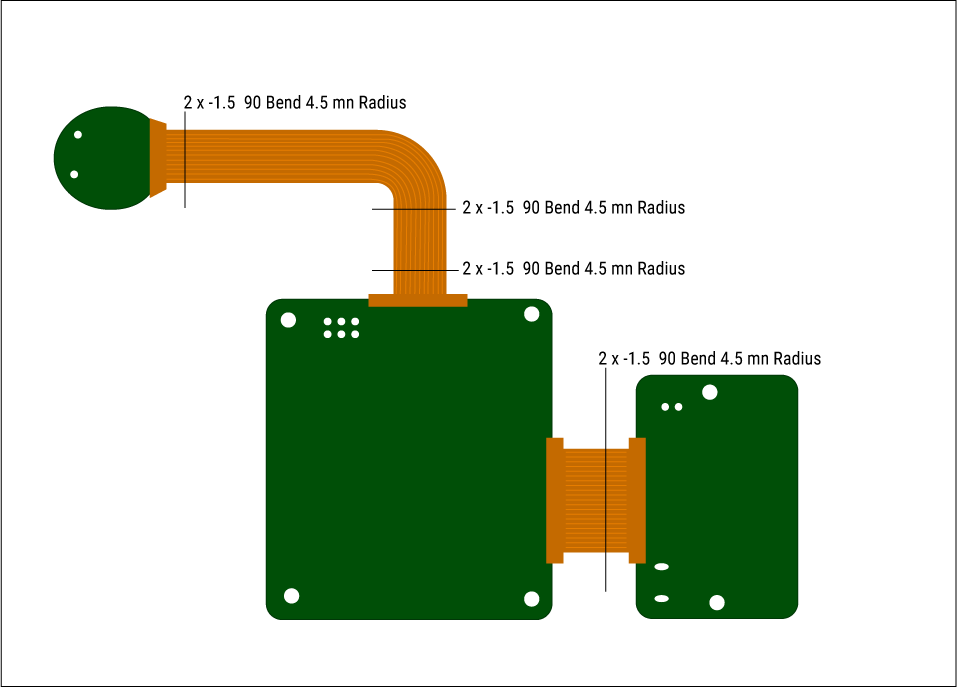

    Flex board bend radius recommendations
  6. Place conductors smaller than 10 mil inside the neutral bend axis, where tension or compression is minimal during flexing.
  7. Provide sufficient space between the transition point of flex and the rigid area from the bending point to minimize the stress on the flex layers.

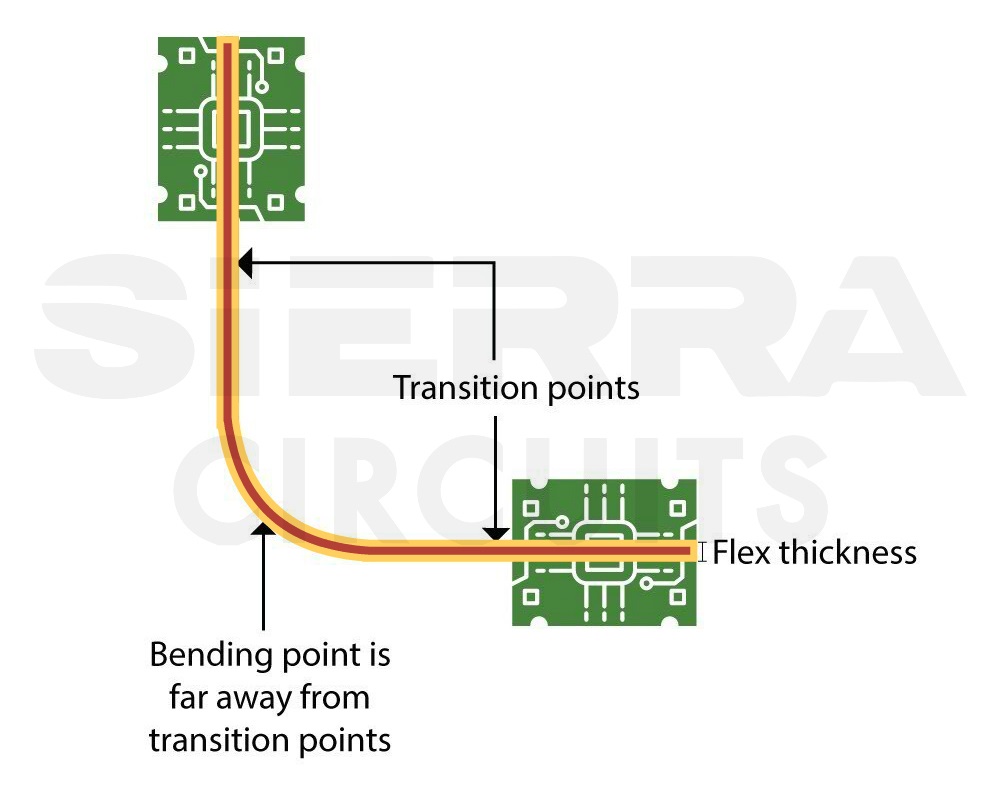

    The bending point is kept far away from transition points
  8. Use tear guards to reinforce the flex material along the inside bend radius. This will prevent the flex material from tearing.

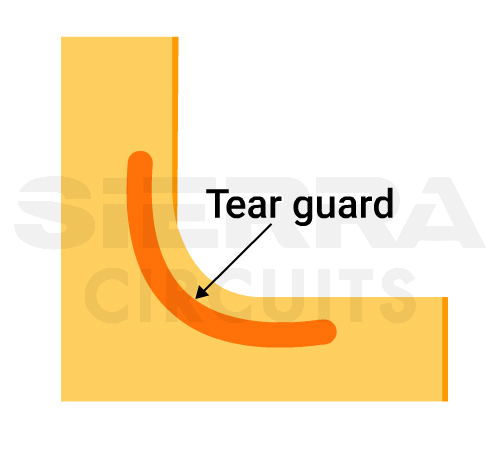

    Tear guard along the inner bend radius to reinforce the flex material
  9. Maintain at least 10 mil clearance between two flex regions. With inadequate clearance, adjacent flex regions may mechanically interfere with each other, leading to bending restrictions, increased stress on the material, or even tearing.

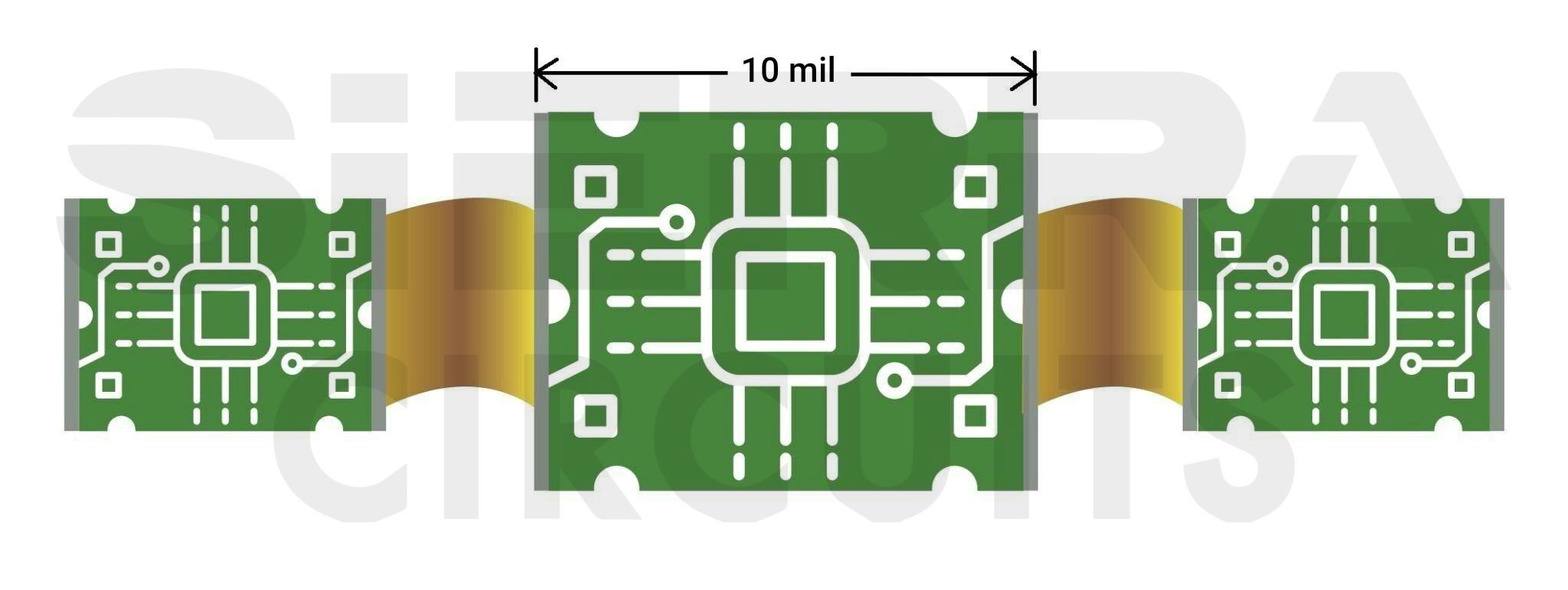

    Ensure a minimum clearance of 10 mil between adjacent flexible regions
  10. Use cross-hatch for ground and power planes to reduce copper on a plane layer and increase the board’s flexibility. Typically, we recommend 0.015” wide signals with 0.025” spacing for the cross-hatched plane layers.

A cross-hatch plane can be characterized by the ratio of cross-hatch conductor width (HW) to cross-hatch pitch (HP). The lesser the ratio, the greater the percentage of copper being removed.

For example, a 50% copper removal would be achieved if the ratio is about 0.293. The higher the copper percentage being removed in the cross-hatch, the higher the increase in controlled impedance compared to the solid copper plane.

Hatch pitch and hatch width of a reference plane



To learn how to design a reliable flex PCB, download our design guide.

Flex PCB Design Guide - Cover Image

Flex PCB Design Guide

10 Chapters - 39 Pages - 45 Minute Read
What's Inside:
  • Calculating the bend radius
  • Annular ring and via specifications
  • Build your flex stack-up
  • Controlled impedance for flex
  • The fab and drawing requirements



2. Prefer adhesive-less flex material to reduce the overall board thickness

There are two types of flex materials:

  1. Adhesive-based material: The copper is bonded to the polyimide with acrylic adhesive.
  2. Adhesive-less material: The copper is cast directly onto the polyimide.

The use of adhesives in rigid areas can create cracks in via plating. This is because acrylic adhesives become soft when heated. Consequently, when designing for adhesive-based materials, it’s important to incorporate anchors and teardrops in your design.

Drawbacks of using adhesive-based materials

  1. These materials are prone to absorbing moisture from the environment, making them unsuitable for use in systems exposed to the outside environment.
  2. The core thickness of adhesive-based material can be reduced after the fabrication process. This leads to dimensional error.

Why adhesive-less flex material is preferable

  1. Eliminates the adhesive bond layers and makes way for thinner laminates.
  2. Offers higher operating temperature ratings and higher copper peel strength.
  3. Moisture-resistant when exposed to the environment.

4 material selection guidelines for your flex printed circuits

  1. Prefer adhesive-less materials for high-speed applications due to their consistent results and cost-effectiveness. If you are choosing adhesive-based material, have acrylic adhesives of 1 mil thickness.
  2.  If you’re mounting components on flex sections, include PCB stiffeners for mechanical support. Use Kapton when the stiffener thickness is less than 10 mil.
  3.  Use rolled annealed copper as cladding for polyimide flex cores.

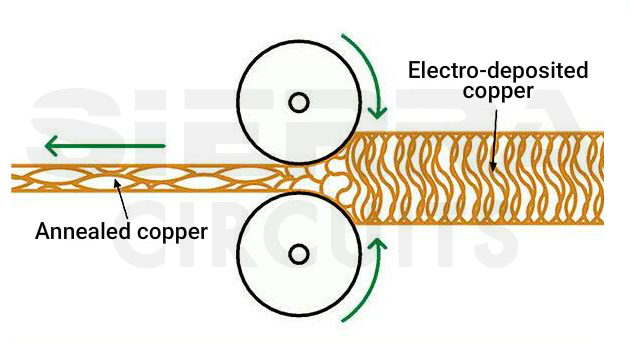

    Rolled annealed copper
    • FPC copper comes in 0.25oz ( 9 μm), 0.375 oz ( 12 μm),  and 2 oz (70 μm)We recommend a minimum copper thickness of 0.25 oz and a maximum of 2 oz.
    • The thinner the copper, the higher the flexibility.
  4. Select polyimide as the primary material for coverlay. It offers uniform thickness (min. 1 mil).
    • Choose min coverlay thickness based on Cu thickness.
      • 0.5 oz Cu or less- min. 1 mil,
      • 1 oz Cu min. 1.5 mil
      •  2 oz Cu min. 3 mil

We recommend the below materials for your flex printed circuit board:

  1. DuPont Pyralux AP
  2. DuPont Pyralux LF
  3. DuPont Pyralux FR



tool-image

PCB DESIGN TOOL

Material Selector

Calc TRY TOOL



3. Stagger traces for multilayer boards to improve flexibility

6 routing strategies you should know before designing a flex circuit board

  1. Stagger traces when designing multi-layer flexible PCBs,. Stacked traces will not only reduce the flexibility of your circuit but will also increase stress, contributing to the thinning of copper circuits at the bend radius.

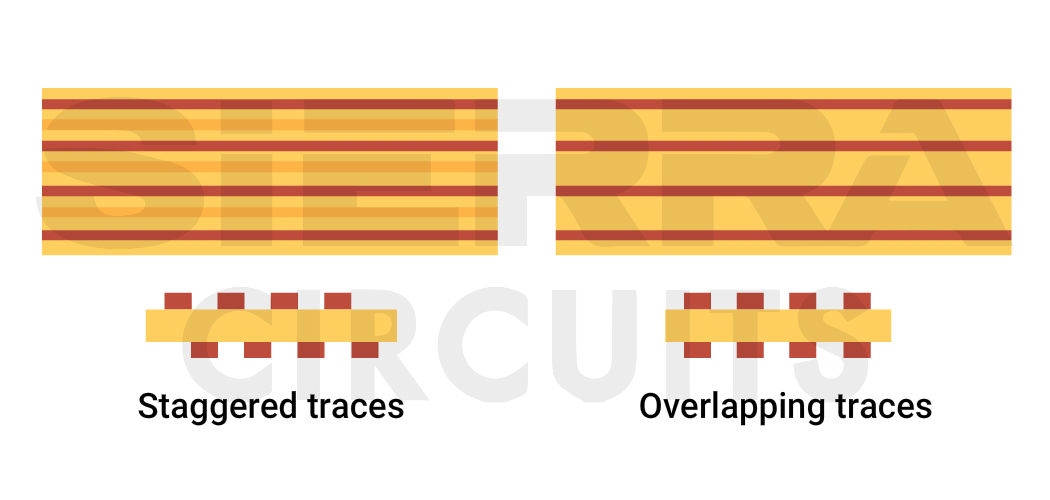

    Staggered and overlapping traces on flex PCB
  2. Keep the traces perpendicular to the bend area to eliminate the stress points that can cause trace copper breakage.

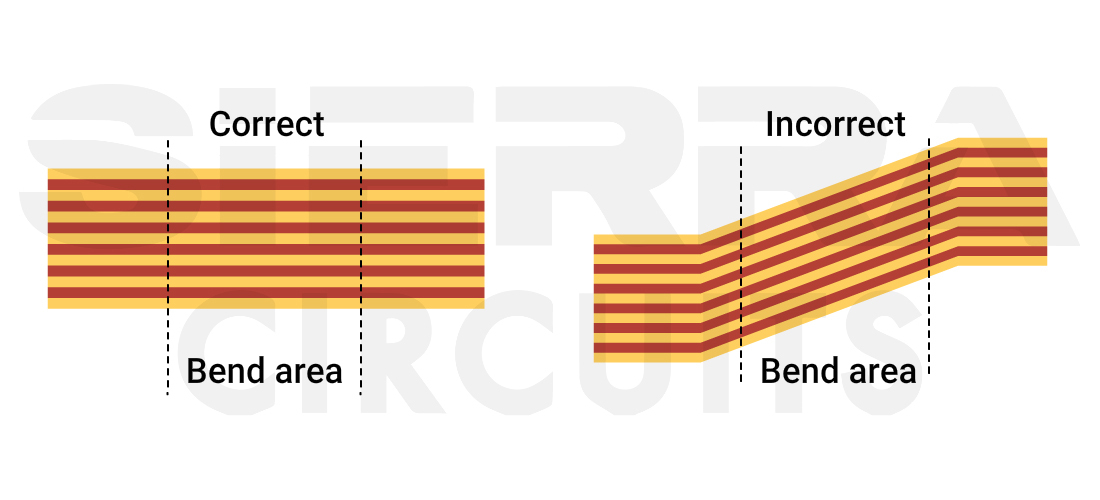

    Keep the traces perpendicular to the bend area to reduce stress

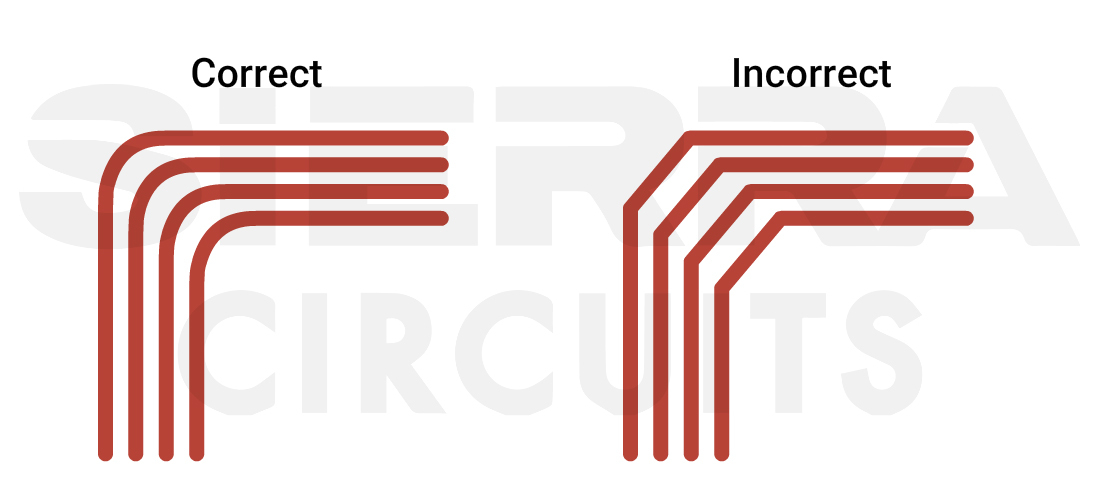

  3. Avoid sharp corners in the flexible areas as they can lead to stress concentration and potential failure. Use rounded corners instead.

    Avoid sharp-edged traces to reduce stress
  4. Taper down the pads towards the end at which they are connected to the traces.  This eliminates the issue where the trace entering a pad forms a weak spot, potentially causing copper fatigue over time.

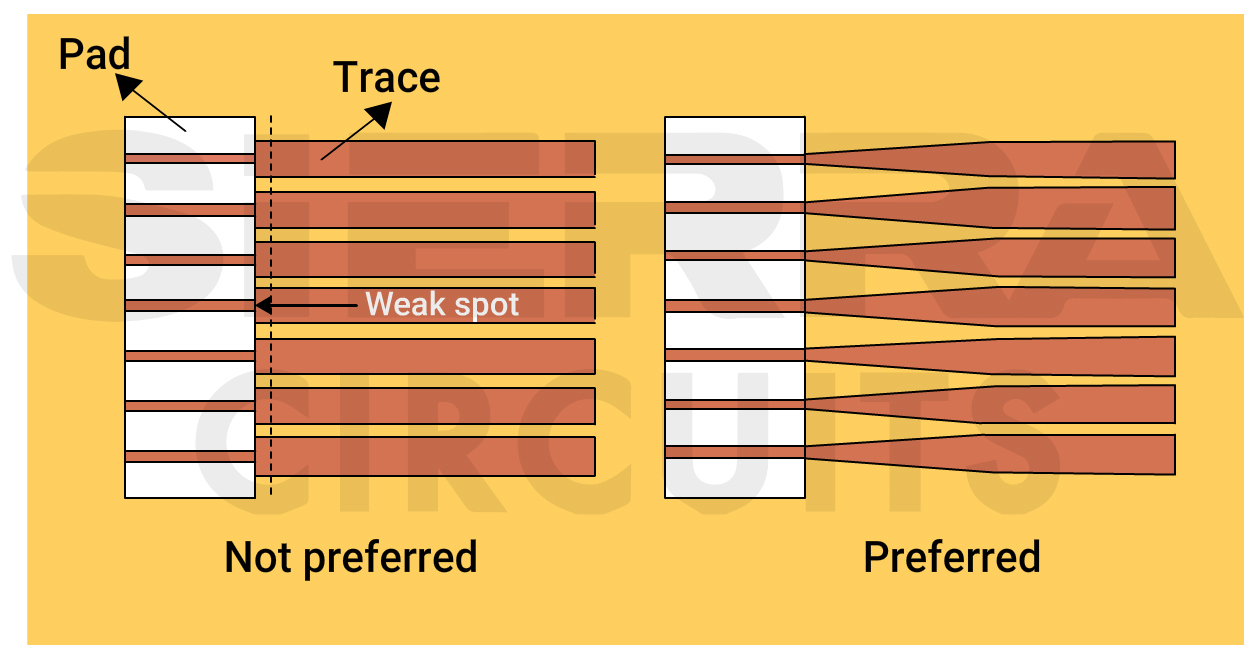

    Tapering the pads where traces enter resolves weak spot concerns
  5. Do not include via-in-pad in flex designs, as it can damage the thin substrate during planarization. Moreover, the smaller aspect ratio of the vias does not allow non-conductive epoxy filling, and it can hamper the electrical conductivity of the vias.
  6. Implement additional through-hole plating of up to 1.5 mil to provide mechanical support from one flex layer to another.

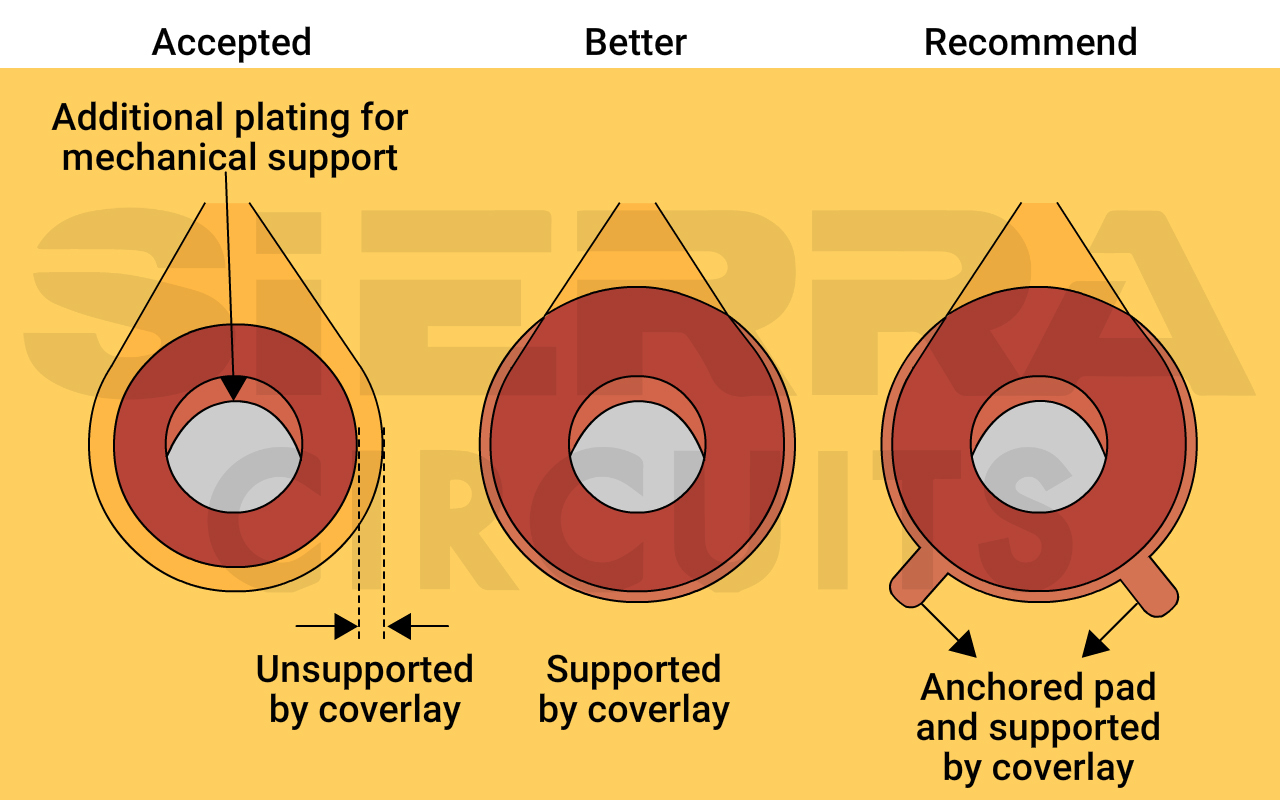

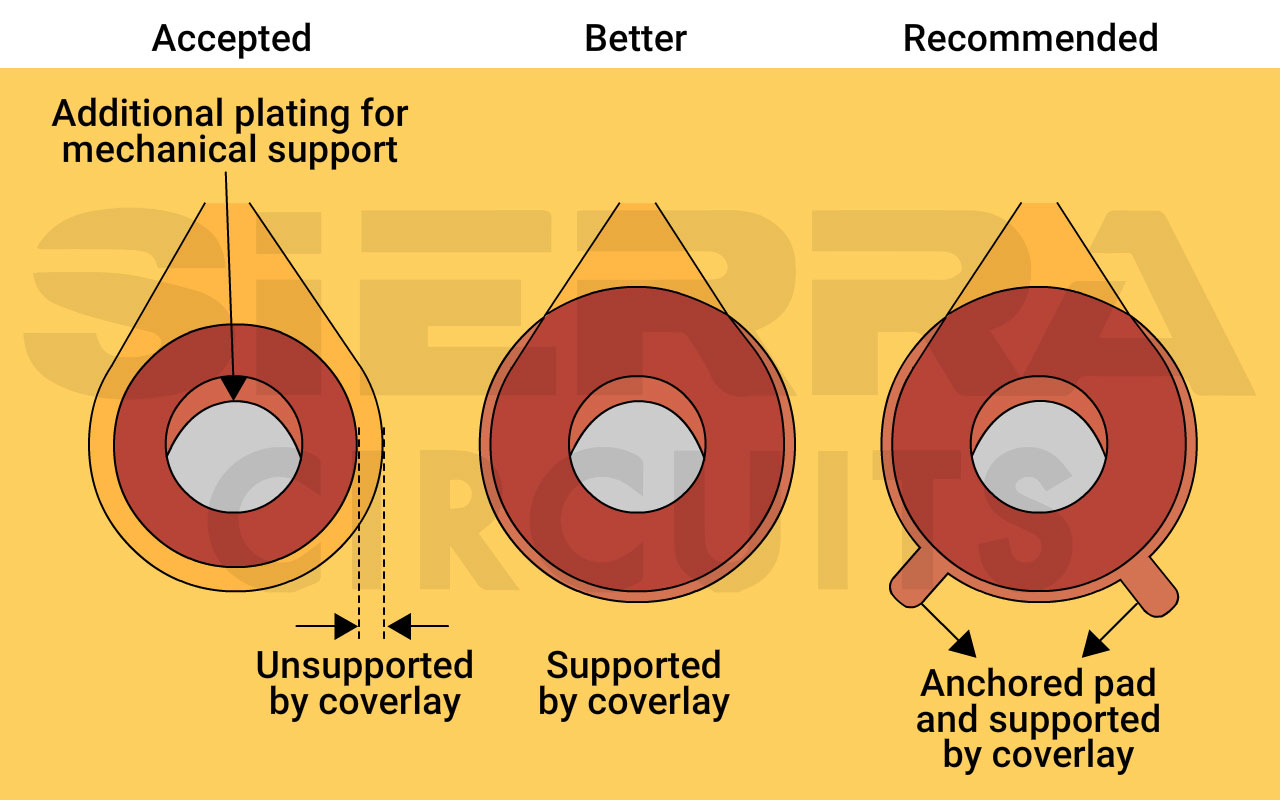

    Additional plating, anchored stubs, and reduced coverlay access openings for PTH mechanical support in flex board

4. Maintain a minimum 8 mil drill-to-copper distance for accurate layer alignment

9 ways to design reliable vias on flex boards

  1. Teardrop annular ring when dealing with traces thinner than 20 mil to enhance the board’s structural integrity against shear force and vibrations.
  2. Incorporate anchors and spurs encapsulated with coverlay to avoid trace lifting and pad peeling.

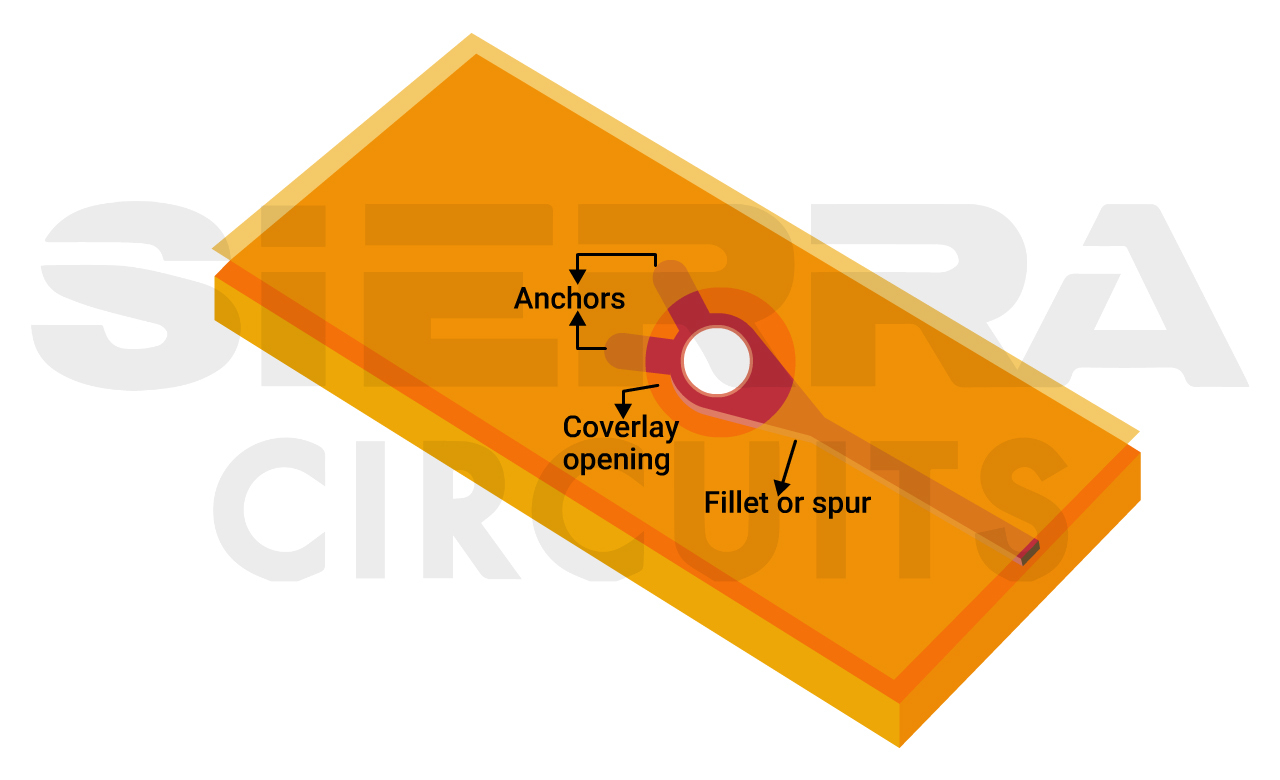

    Anchors and fillets on FPC traces and pads
  3. Avoid vias in the flex section of dynamic boards, as they are at risk of cracking
  4. Maintain at least 50 mil space between the vias and the stiffener’s edge. Vias are safe over a stiffener, but those placed just off its edge risk cracking.
  5. Place vias at least 30 mil away from the rigid-flex/flex interface.
  6. Maintain a hole-to-flex distance of 50 mil to increase the board’s reliability. This distance can be reduced to 30 mil for commercial applications. Insufficient clearance can generate undesired stress during bending and detach the via from its plating.
  7. Prefer pad-only plating (button plating) for flex boards. In this process, copper is deposited only on the vias/pads, reducing the amount of copper, which increases the board’s flexibility. Further, it aids in improving etch yields in small etch patterns by allowing manufacturers to control the copper thickness. However, the extra processing steps make this expensive.

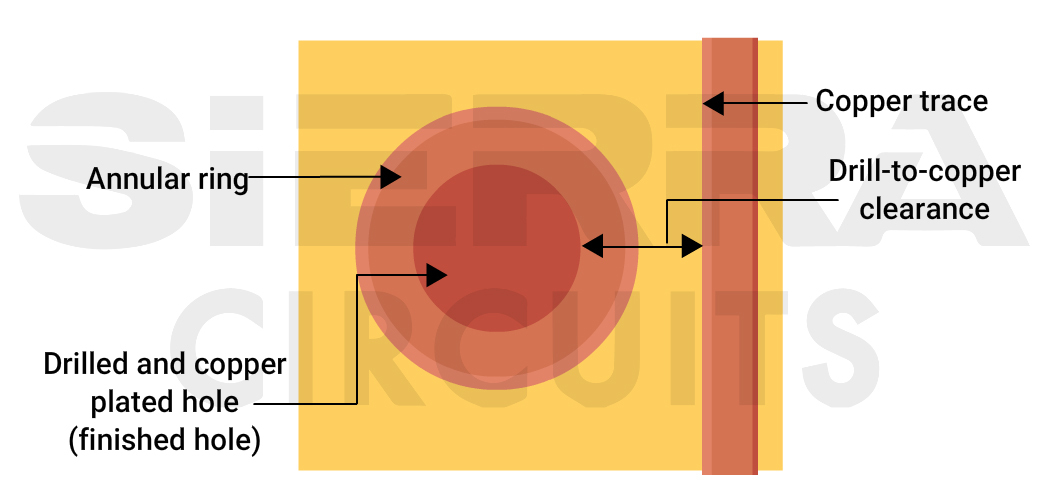

  8. Keep the drill-to-copper distance of around 8 mil to achieve accuracy in layer alignment. This aids in the manufacturing process as flex materials are prone to more movement and contraction.

    Maintain at least 8 mil spacing between drill to copper
  9. Keep the annular rings as large as possible (at least >8 mil) to improve the mechanical strength of the connection.



For more design for manufacturing guidelines, download the DFM handbook.

tool-image

PCB DESIGN TOOL

Better DFM

Calc TRY TOOL



5. Incorporate stiffeners to enhance mechanical stability

The stiffener is an additional mechanical piece that provides mechanical support to your PCBA. By adding localized rigid material, single-sided, double-sided, and multilayered flex boards can be stiffened in specific areas.

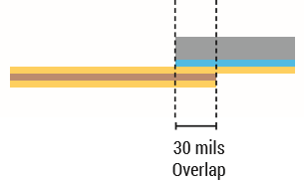

When you add stiffeners, ensure it overlaps the coverlay by 30 mil as shown below.

Stiffener should overlap the bare coverlay by 30 mil

For more on PCB stiffeners, here is a guide to PCB stiffeners for flex and rigid-flex.

6.  Place the flex layers in the center of your rigid-flex stack-up

Request a stack-up from your manufacturer in the design phase. It is crucial that you know what stack-up you are designing. Rigid-flex is the simplest configuration that will allow you to reduce the number of connectors, which will also increase wiring density and reliability.

Having a face-to-face meeting with the supplier is the best way to ensure that you’re on the same page in terms of where the overall PCB process is headed. This meeting can also help ensure that flex PCB layout techniques and capabilities are well understood.

6 design tips to build flex and rigid-flex stack-up

  1. Position the flex layers in the stack-up’s center to provide protection from exposure to outer-layer plating. This placement also simplifies manufacturing and improves impedance and control in the flex area.
  2. Use an even number of layers to ensure a balanced stack-up.
  3. Utilize CAD tools for virtual mock-ups during the early design phase. You can create flex board models using stiff paper or mylar.
  4. Provide impedance trace details such as trace width, height, and impedance tolerance in the stack-up.



tool-image

PCB DESIGN TOOL

Trace Width, Current Capacity and Temperature Rise Calculator

Calc TRY TOOL

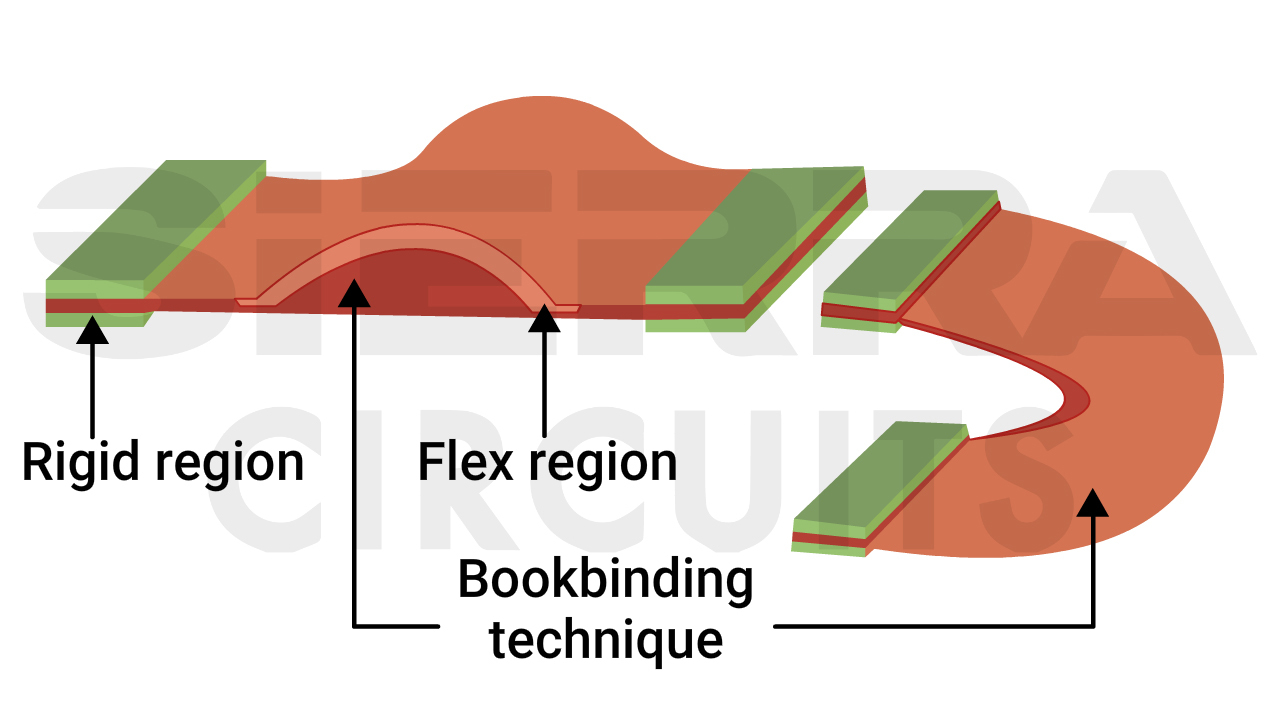

  1. Use bookbinding in rigid-flex boards, allowing more flex layers to navigate tight bends without deformation. It allows the PCB to perform bends of 180˚ or more. However, a board with bookbinding costs 30% more than a standard rigid-flex one.

    Bookbinding construction in rigid-flex PCB
  2. Implement the rigid-flex air-gap construction method to eliminate the flex adhesives within the rigid sections. This method also addresses the via reliability issues and improves bendability.

Sierra Circuits PCB design team recently fixed an issue concerning flex layer placement in a rigid-flex stack-up. The flex layer was initially placed at the top of the build-up, as shown below.

Rigid-flex PCB stack-up with a flex layer at the top

This was a four-layer flex board with zero insertion force (ZIF) connectors requiring controlled impedance.

This stack-up had a few issues. First, the board’s flex layers were located on the top of the stack-up, which increased the risk of potential manufacturing issues. When the flex layers are on the top, panels are harder to handle and process.

We embedded the flex layers in the center of the stack-up, as shown below.

Rigid-flex stack-up with flex layers in the center

This protected the layers during manufacturing and ensured that the less-durable flex layers were not exposed to outer-layer plating. Further, this arrangement made the board more durable and easier to manufacture.

The flex layers are also protected by our surface plating. Rigid AP material was used, allowing for better impedance control. It was a much better option than the original FR-4 material.

For customized solutions tailored to your specific needs, partner with us.

Book a meeting with our design expert.

What to include in your flex PCB fab drawings

To successfully design a flexible PCB, it is important for you to have a basic understanding of the fab drawing requirements, which include:

  1. Flex board stack-up construction and layer order
  2. Dimensional drawing and tolerances
  3. FPC materials to be used
  4. IPC class type (class 1,2 or 3)
  5. Drill symbol chart
  6. Bend radius
  7. Plating, testing, and marking requirements

To know more about flex drawing requirements, read  9 drawing requirements for flex PCB design.

Fab notes for flex and rigid-flex circuit boards

  • Clearly differentiate rigid and flex fab notes.
  • The FPC shall be fabricated to IPC-6013.
  • The maximum board thickness shall not exceed (your requirement here) and applies after all lamination and plating processes.
  • The flexible copper-clad material shall be per IPC-4204/11.
  • Choose the coverlay material in accordance with IPC 4203/1.
  • The thickness of acrylic adhesive through the rigid portion of the panel shall not exceed 10% of the overall construction.
  • Misregistration between any two layers shall not exceed ±0.005’’.
  • Warpage shall not exceed 0.75%.
  • Impedance trace details such as trace width and impedance.

Sierra Circuits fabricates and assembles high-quality FPCs.

Check our flex and rigid-flex PCB capabilities to learn more.

Flex and rigid-flex stack-up examples

Single-layer flex stack-ups

single-layer flex stack-up-with coverlay.jpg
Single-layer flex stack-up with coverlay
Single-layer flex stack-up with solder mask

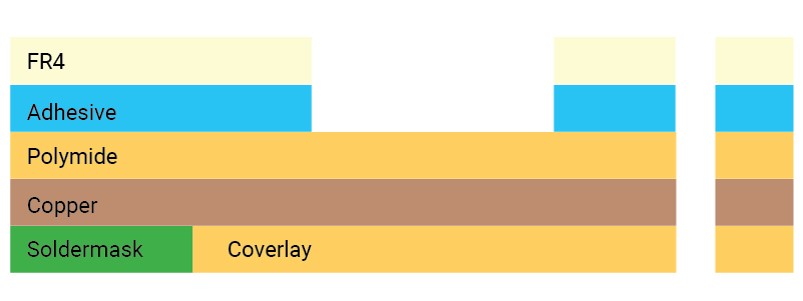

single-layer-flex stack-up-with-FR4-stiffener.jpg
Single-layer flex stack-up with FR4 stiffener
single-layer- flex-stack-up-with-kapton-stiffener.jpg
Single-layer flex stack-up with Kapton stiffener

Two-layer flex stack-ups

Two-layer flex stack-up with solder mask

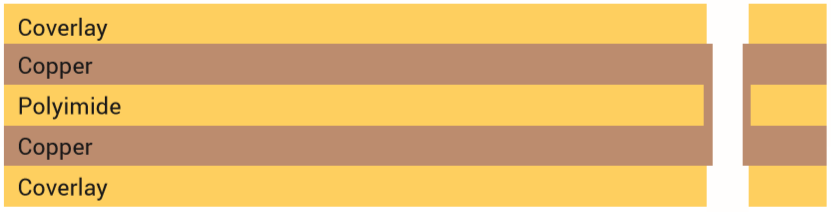

Two-layer flex stack-up with coverlay

Multi-layer flex stack-ups

4-layer flex stack-up
6-layer rigid-flex stack-up

Key takeaways:

  1. Employ design strategies such as avoiding 90˚ bends, tear guards, and staggering conductors to enhance flexibility and reduce stress.
  2. To improve reliability during flex printed board routing, use larger bend radii, staggered traces, and avoid sharp corners.
  3. Incorporate teardrop-shaped vias to minimize risks associated with via peeling and cracking.
  4. Ensure annular rings are sufficiently large (>8 mil) to strengthen connections, considering factors like misregistration and trace thickness.
  5. Introduce stiffeners in specific areas to enhance mechanical rigidity, especially around mounting components.
  6. Position flex layers in the center of the stack-up to simplify manufacturing, improve impedance, and enhance reliability.
  7. Work closely with flex board manufacturers to select suitable materials, adhere to design rules, and ensure compatibility with intended applications.

Incorporate these layout techniques in your next flex design for an error-free circuit board.
