Annular Ring Calculator

Sierra Circuits’ Annular Ring Calculator computes annular ring widths for vias in PCBs. This includes minimum, recommended, and maximum ring widths.

Try This New Tool

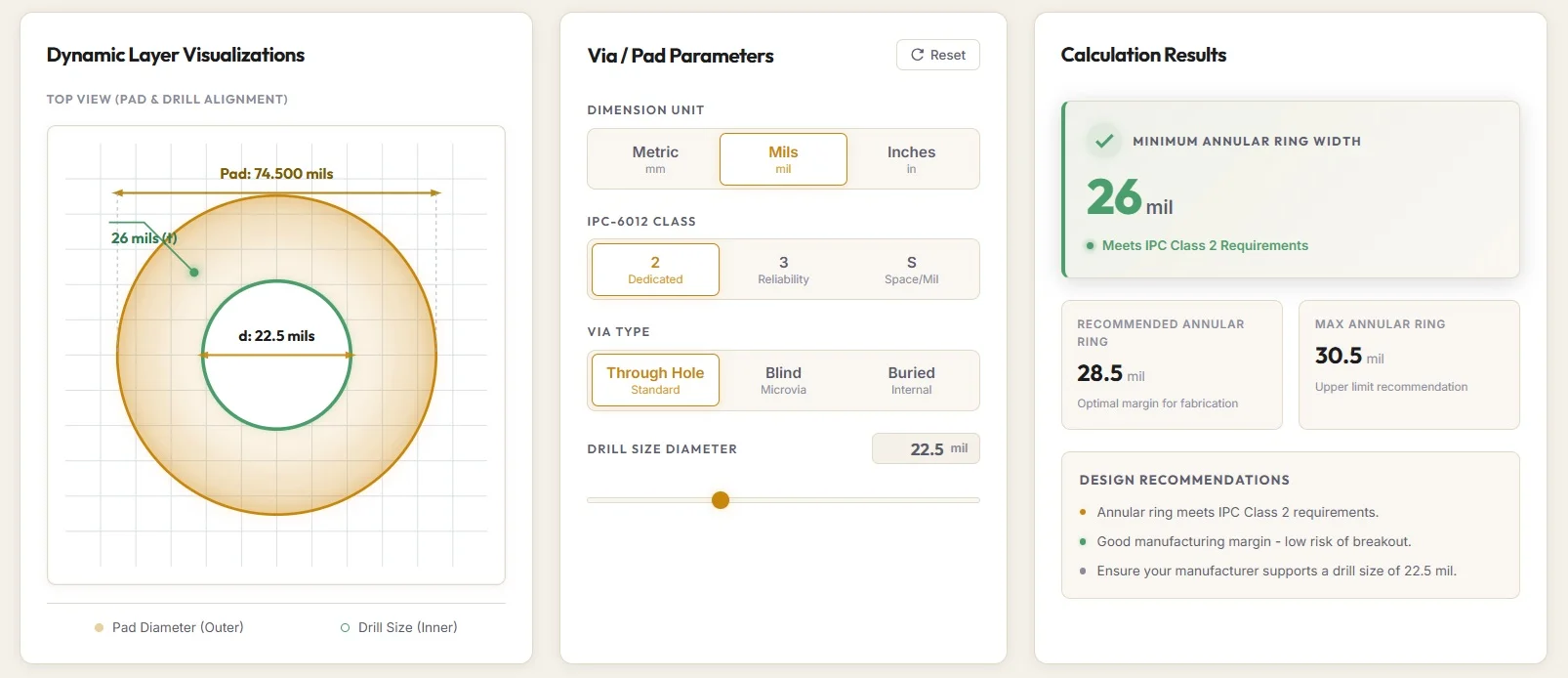

The Annular Ring Calculator features a slider that lets you adjust the drill diameter and automatically displays the corresponding ring width for PCB vias.

Sierra Circuits’ Annular Ring Calculator.

Key features of the tool:

Calculates 3 annular widths: minimum, recommended, and maximum.
Supports multiple via types: through-hole, blind, and buried vias.
Recalibrates ring values based on the drill diameter.
Provides visualization of pad and drill alignment.

How to use the Annular Ring Calculator

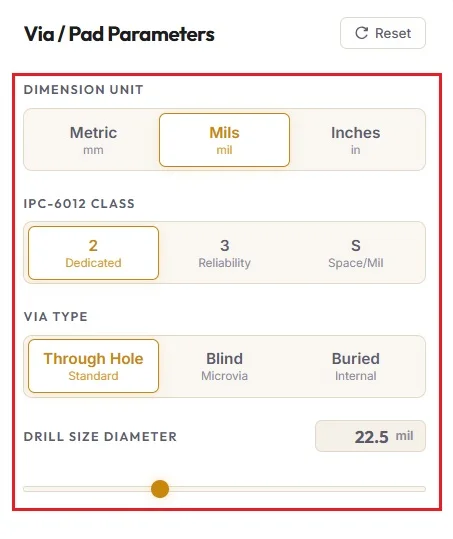

Configure the unit, IPC-6012 class, via type, and drill diameter. The ring values will be displayed in the Calculation Results section.

Step-1: Select the preferred Dimension Unit: Metric (mm), Mils (mil), or Inches (in). The drill diameter and ring values will be displayed in the selected unit.

Define the dimension unit, IPC class, via type, and drill diameter.

Step-2: Choose the applicable IPC-6012 CLASS:

2 (Dedicated)
3 (Reliability)
S (Space/Mil)

Step-3: Pick the required VIA TYPE:

Through Hole (Standard)
Blind (Microvia)
Buried (Internal)

Step-4: Set the DRILL SIZE DIAMETER using the slider.

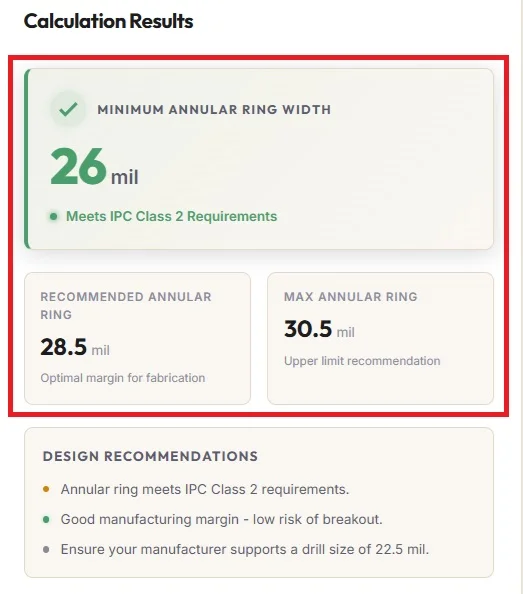

The tool displays the following values:

MINIMUM ANNULAR RING WIDTH
RECOMMENDED ANNULAR RING
MAX ANNULAR RING

The calculated data recalibrates when you change the drill diameter, IPC-6012 class, or via type.

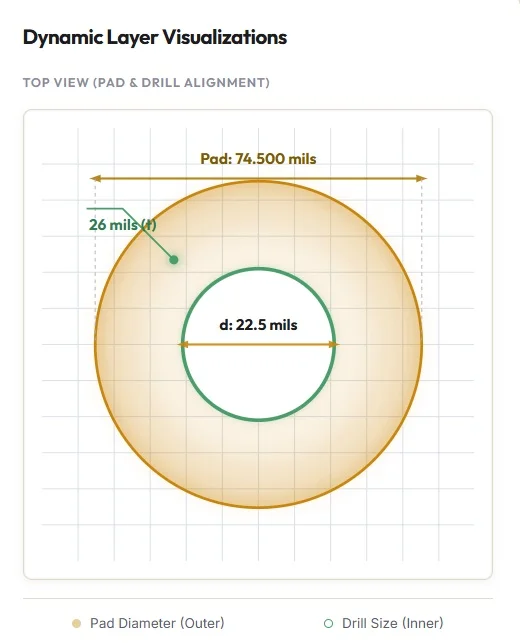

The Dynamic Layer Visualizations section displays a top view of the pad and drill alignment, providing a clear view of via geometry on a printed board layer.

The visual automatically updates if you change any of the input parameters.

The Annular Ring Calculator helps you determine suitable ring widths for different via types and drill sizes, ensuring manufacturable circuit board features. Try the tool today!
