Ultra-HDI PCB Manufacturing Using mSAP Technology

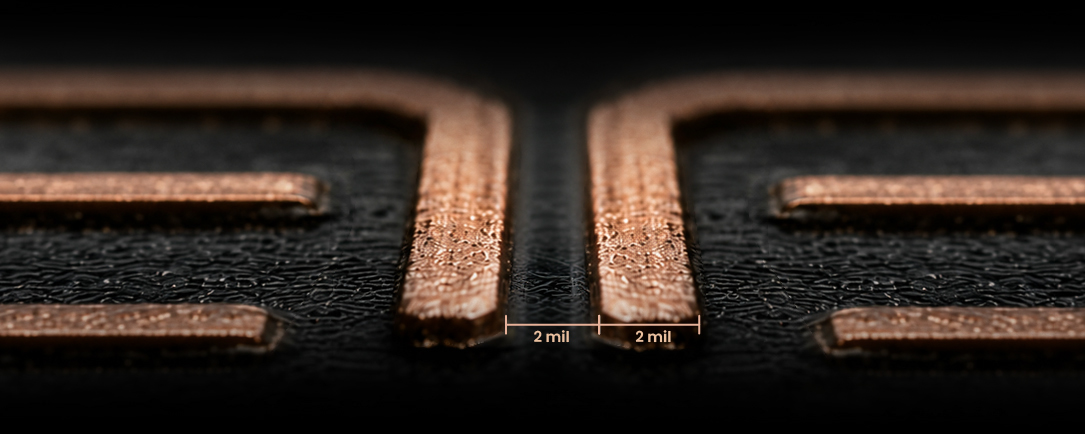

Sierra Circuits manufactures 2/2 mil line and space features with precise trace geometry and tight impedance tolerances.
How are Ultra-HDI Boards Manufactured?

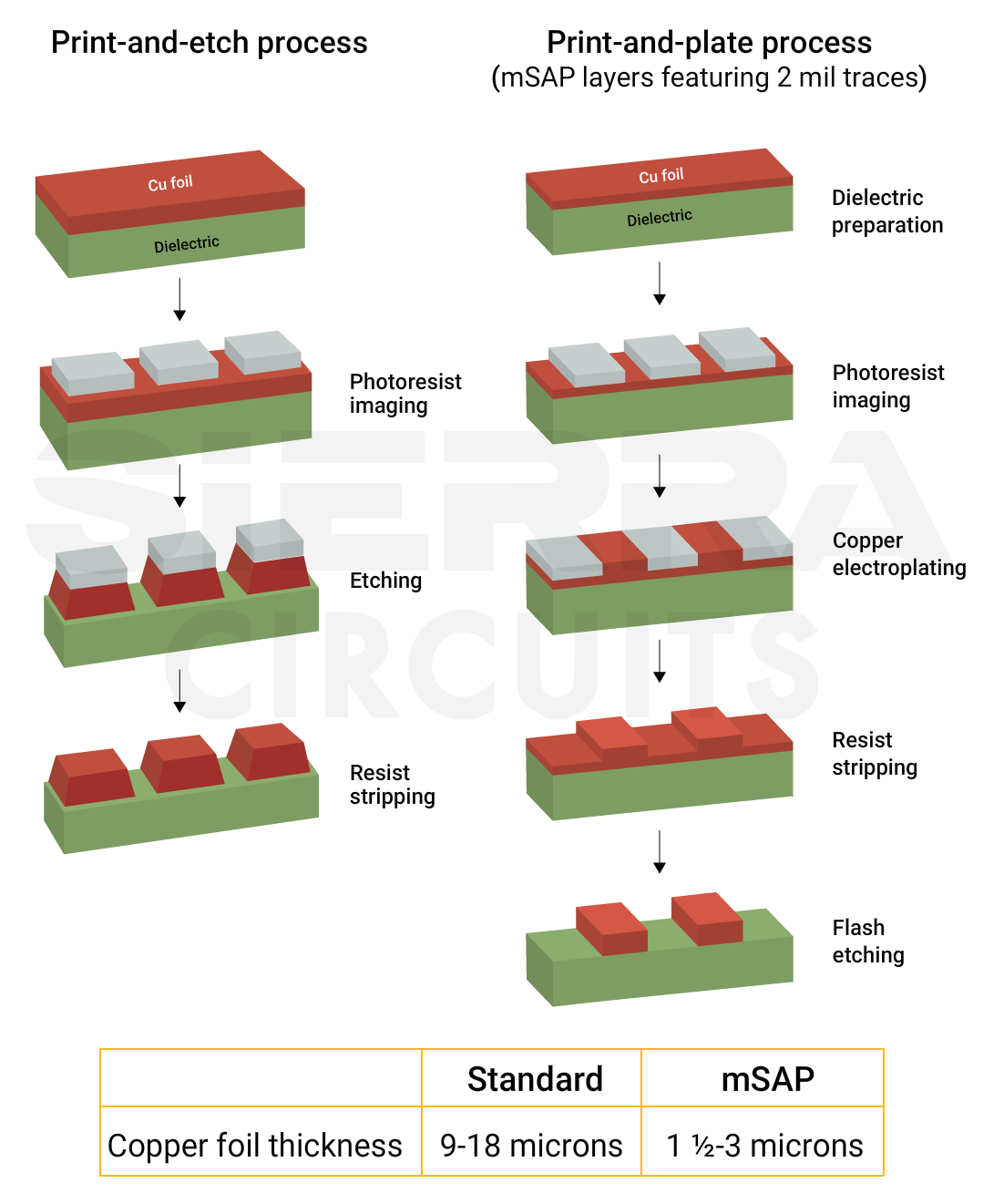

- UHDI designs use the mSAP technique to create ultra-fine 2/2 mil traces and spaces that are difficult to achieve with conventional subtractive etching.
- The process produces highly defined copper features with near-vertical sidewalls and minimal undercut, helping maintain consistent impedance and signal performance.
- The resulting traces are smoother and uniform, reducing insertion loss and signal degradation, much needed in high-speed designs.
- Thinner traces and tighter spacing also create more room for component pads, microvias, and other critical features, increasing circuit density without adding layers or increasing board size.
Ideal for:
- Compact and high-density designs
- Fine-pitch component routing
- Tight impedance requirements
- Dense RF and microwave layouts
Advanced UHDI Manufacturing Capabilities

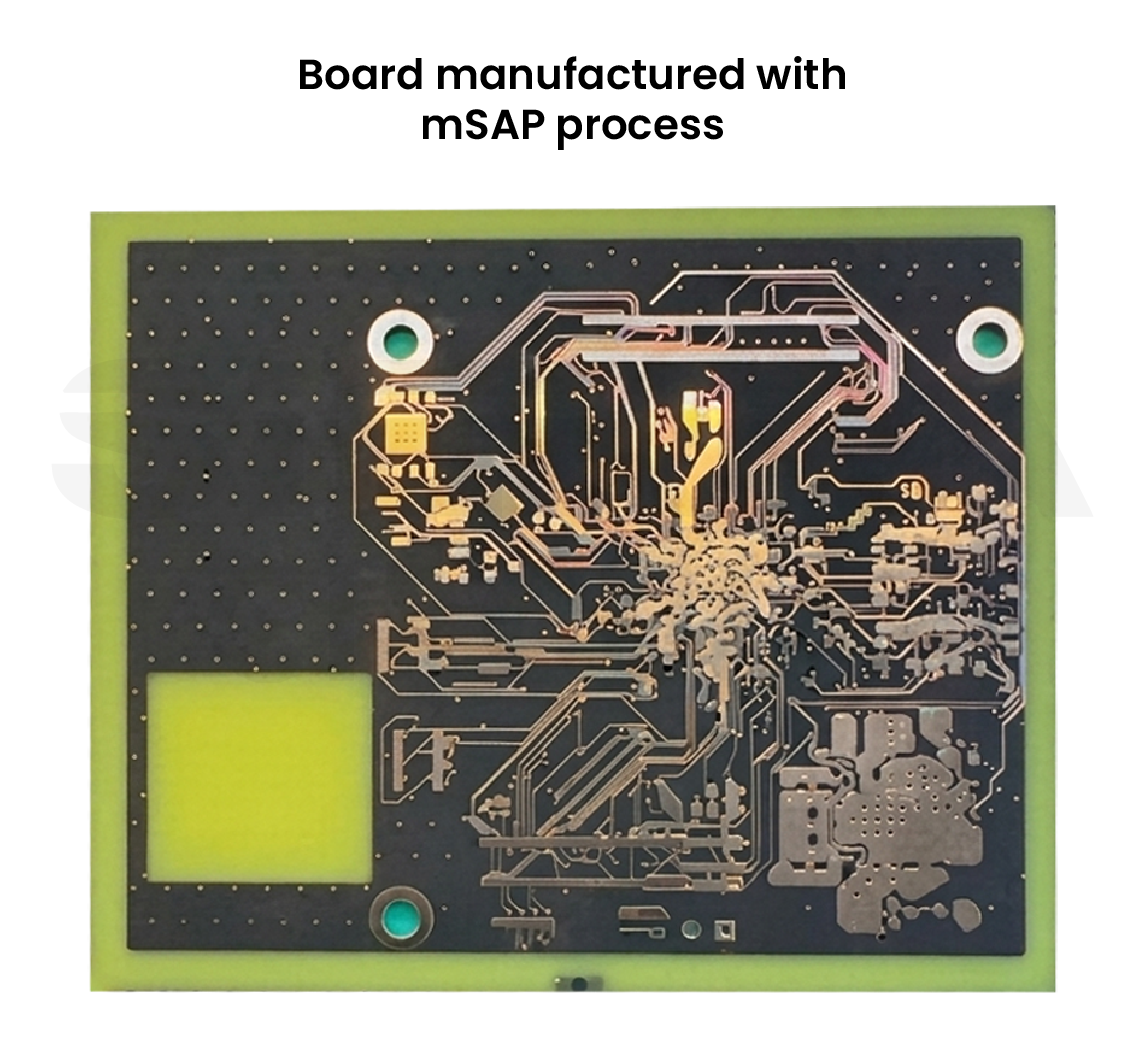

- At Sierra Circuits, we have been perfecting our ultra-HDI process since 2014 to consistently manufacture 2/2 mil (50/50 µm) trace-and-space features.
- We constantly improve our process and equipment to keep up with advancing technology. The latest upgrades include dry film and vacuum lamination, direct imaging, mechanical vision drilling, laser drilling and routing, plasma etching, copper plating, electrical testing, and in-process/final inspection.
- As trace widths get smaller, the processing window also shrinks. Hence, Sierra Circuits has developed an extensive system to monitor and control every process, chemistry, and piece of equipment to consistently deliver high-quality PCBs.
- We use the XACT self-learning system and a database of around 260,000 reference builds to predict and track material movement for tight layer-to-layer registration in UHDI PCBs.
- Our engineering team performs DFM analysis, stack-up optimization, and material recommendations tailored to your ultra-HDI and mSAP designs.
| Stack-Up | Stack-Up | ||
|---|---|---|---|
| Supported PCB Types | Rigid PCBs only (no flex) | ||
| Maximum Layer Count | 16 | ||
| Maximum Layers with 2/2 Technology | Up to 4 layers in the stack-up may utilize 2/2 technology | ||
| Maximum Copper Plating Thickness | 25 µm (1 mil) on layers containing 2/2 mil features | ||
| Supported Materials | High-end materials from Isola, Panasonic/Megtron, EMC, Ventec, and other leading suppliers. Note: We recommend using materials with a flat/spread glass support structure. | ||
| Unsupported Materials | PTFE | ||
| Maximum Board Size | 6"×6" | ||
| Trace and Space Clearance | Trace and Space Clearance | ||
|---|---|---|---|
| Minimum Trace/Space | 50/50 µm (2/2 mil) | ||
| Minimum Trace-to-Via Pad | ≥60 µm (2.36 mil) | ||
| Minimum Trace-to-Copper Pour | ≥50 µm (1.97 mil) | ||
| Minimum Trace-to-Soldermask | ≥75 µm (2.95 mil) | ||
| Drill Parameters | Drill Parameters | ||
|---|---|---|---|
| Via Fill | Not supported on outer layers containing 2/2 mil features | ||
| Laser Via Plating Thickness | Up to 20 µm (0.8 mil) | ||
| Laser Via Diameter | 101 µm (4 mil) | ||
| Capture Pad | 203.2 µm (8 mil) | ||
| Minimum Annular Ring (IPC Class 2) | 50 µm (2 mil) | ||
| Minimum Mechanical Drill Size | 104 µm (4.1 mil) for 2-layer boards ≤32 mil finished thickness 150 µm (5.9 mil) for boards with ≥2 layers | ||
| Surface Finish | Surface Finish | ||
|---|---|---|---|
| Surface Finish Available | If the 2/2 mil line/space features are not covered by the solder mask, then only Immersion Silver surface finish is allowed. If the copper feature is covered by solder mask, any standard surface finish may be used, including OSP, ENIG, Electrolytic Soft Gold or Electrolytic Hard Gold. | ||
| Lead Time | Lead Time | ||
|---|---|---|---|
| Typical Lead Time | 1 week per lamination cycle Note: Actual lead times may vary based on design complexity, including stacked laser vias, via-in-pad, edge-plated slots, and laser-milled cavities. | ||
DFM Guidelines for Ultra-High Density Interconnect PCBs
- Keep 2/2 mil circuitry away from panel edges to reduce the risk of fabrication defects and improve manufacturing yield.
- Prefer staggered over stacked microvias, as stacked require additional processing and can introduce greater mechanical stress on the board.
- Maintain balanced copper distribution throughout fine-line regions and avoid large copper voids to improve manufacturability and plating uniformity.
- Consider the increased resistance of ultra-fine traces when routing long signal paths. For example, a 50 microns wide, 10 microns thick copper trace has an approximate resistance of 0.5-0.6 Ω/in.
- Reserve 2/2 mil traces for signal routing and avoid using them for power distribution.
- For high-speed RF, SerDes, and impedance-controlled designs, account for trace geometry, copper characteristics, and material properties during signal integrity analysis.
Every UHDI design is unique. Talk to our experts to evaluate the design for manufacturability.
