Rigid-Flex PCB Case Study

Developing A Wearable High-Speed Board

The US Air Force engaged HoloEye Systems to create a prototype binocular holographic waveguide visor display (HWVD) attached to the helmet worn by a pilot of an Air Force jet. Advanced sensors throughout the aircraft generated key info that the pilot needed. This helmet-mounted display (HMD) presented a heads-up display of instrumentation and digital representations of important data. The helmet was the heart of the aircraft, enabling the pilot to take advantage of the whole system.

This cutting-edge technology significantly decreased the cost, volume and weight of traditional helmet-mounted displays, replacing bulky optics systems with thin, light-weight, see-through diffractive optics. The headset display was one of the first reported binocular HMDs in development using a liquid crystal and silicon (LCOS) microdisplay.

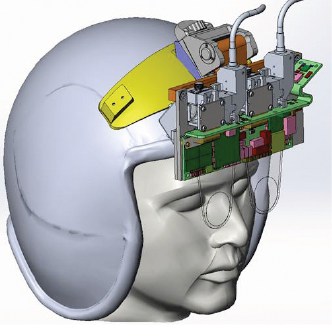

The stereo microdisplay controller was designed for a binocular holographic waveguide visor display to be worn by an Air Force pilot.
The stereo microdisplay controller was designed for a binocular holographic waveguide visor display to be worn by an Air Force pilot.

PCB Requirements
The helmet-mounted display supported the PCB in its mechanical housing, and an HDMI cable fed into the video source. An optical cable connected to the display, which carried light to the headset’s LCOS microdisplay. The light illuminated the display and was projected onto waveguides that presented information to the pilot’s eyes.

Click to download and continue reading this case study.

Want to learn more about Sierra Circuits’ flex and rigid-flex capabilities? Head on over to our flex and rigid-flex product pages!
